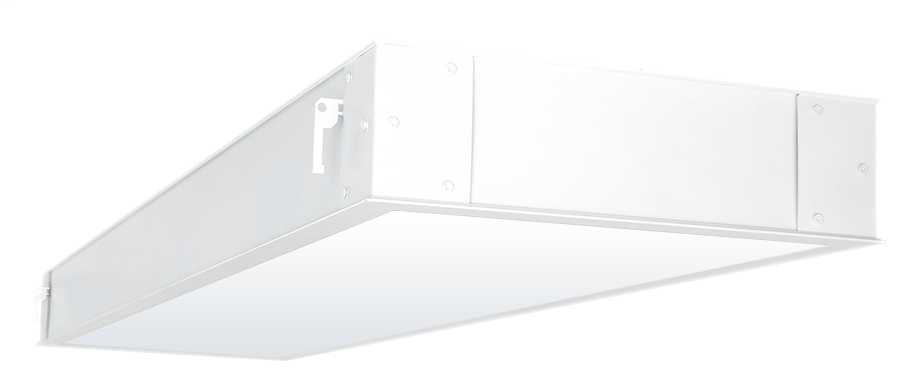

RAB PANEL1X4-34N/D10 LPANEL 1X4 CEI
$157.25/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # PANEL1X4-34N/D10
North Coast Part # 1168721

Features

  • Up to 60% savings on energy costs
  • High-reflectance (91%) powder coat applied post fabrication for a more durable finish
  • Ultra-smooth diffusion lens creates uniform light, edge to edge, for evenly lit spaces
  • 100,000-hour LED Lifespan
  • 5-Year, No-Compromise Warranty

Specifications

Performance

  • Watts: 34W
  • Color Temp: 4000K (Neutral)
  • Lumens: 4,334
  • Efficacy: 130.5 lm/W
  • Color Accuracy: 83 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.29A
  • 208V: 0.17A
  • 240V: 0.15A
  • 277V: 0.13A
  • Input Watts: 33.2W

Dimensions

  • Weight: 19.5 lbs

Electrical

  • Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
  • THD: 5.8% at 120V, 11.0% at 277V
  • Power Factor: 99.7% at 120V, 93.6% at 277V

Listings

  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PPM1FBA4
  • UL Listing: Suitable for damp locations. Recommended for indoor use only.
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Construction

  • IC Rating: Suitable for insulated ceilings
  • Lens: High-transmission acrylic lens with excellent distribution and uniformity
  • Housing: Lightweight housing is constructed of extruded aluminum
  • Installation: Modular splice box/driver compartment for quick installation. Integral Tee-grid ceiling clips make installation easy and secure.
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.

LED Characteristics

  • LEDs: Long-life, High efficiency, micro-power, surface mount LEDs; binned and mixed for uniform light output and color
  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Other

  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981310754
GTiN 00019813107547
Finish Bronze
Voltage 120-277 Volt
Type TROFFER
Applications INDOOR
Weight 19.5 lb
Wattage 34 Watt
Color Temperature 4000 K
Color Accuracy 83 CRI
Lumens 4,334 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Lens Material Acrylic
Amperage 0.17 Amp
Average Rated Life 100000 hr
Input Wattage 33.2 W
Efficacy 130.5 LPW
