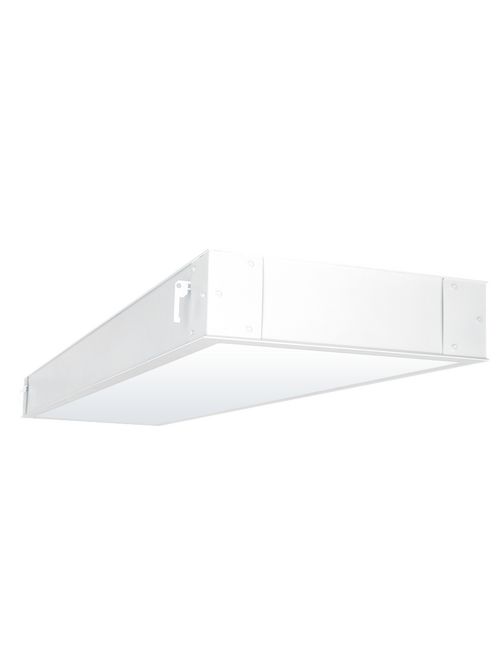

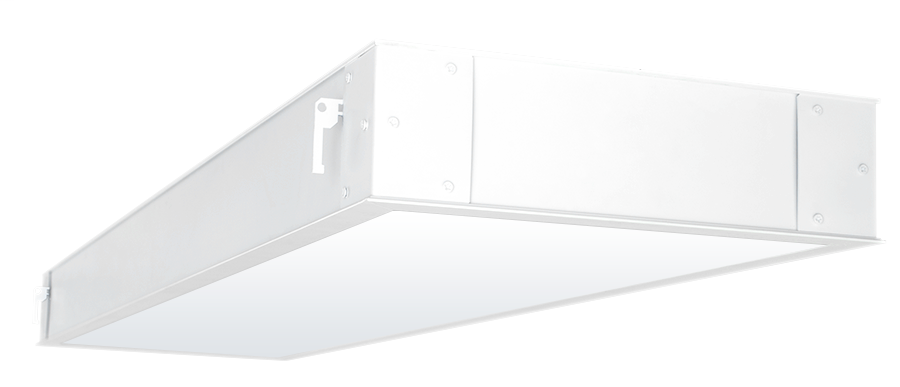

RAB PANEL1X4-52YN/D10 LPANEL 1X4 CE
$365.45/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # PANEL1X4-52YN/D10
North Coast Part # 1435574

Features

  • Up to 60% savings on energy costs
  • High-reflectance (91%) powder coat applied post fabrication for a more durable finish
  • Ultra-smooth diffusion lens creates uniform light, edge to edge, for evenly lit spaces
  • 100,000-hour LED Lifespan
  • 5-year warranty

Specifications

  • Color: White

LED Info

  • Watts: 52W
  • Color Temp: 3500K
  • Color Accuracy: 83 CRI
  • L70 Lifespan: 100000
  • Lumens: 6168
  • Efficacy: 122 LPW

Driver Info

  • Type: Constant Current
  • 120V: 0.45A
  • 208V: 0.26A
  • 240V: 0.23A
  • 277V: 0.20A
  • Input Watts: 50W

Dimensions

  • Weight: 19.5 lbs

Electrical

  • Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
  • Driver: Constant Current, Class 2, 100-277V, 50/60Hz, 4kV Surge Protection, 1050mA, 100-277V: 0.4A, Power Factor 99.4%
  • THD: 6.3% at 120V, 9.2% at 277V
  • Power Factor: 99.3% at 120V, 94.2% at 277V

Listings

  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
  • UL Listing: Suitable for damp locations. Recommended for indoor use only.
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaries have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have received the Department of Energy "Lighting Facts" label.

Construction

  • IC Rating: Suitable for insulated ceilings
  • Lens: High-transmission acrylic lens with excellent distribution and uniformity.
  • Housing: Lightweight housing is constructed of extruded aluminum.
  • Installation: Modular splice box/driver compartment for quick installation. Integral Tee-grid ceiling clips make installation easy and secure.
  • Finish: Formulated for high-durability and long lasting color.
  • Green Technology: Mercury and UV free. RoHS compliant components. Polyester powder coat finish formulated without the use of VOC or toxic heavy metals.

LED Characteristics

  • LEDs: Long-life, High efficiency, micro-power, surface mount LEDs; binned and mixed for uniform light output and color.
  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
  • Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.

Other

  • California Title 24: PANEL1x4-52/D10 complies with 2013 California Title 24 building and electrical codes as a commercial indoor fixture for general spaces when used with a vacancy sensor and 0-10V dimming control. Select a vacancy sensor using catalog number LVS800. 0-10V dimmer provided by others.
  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish.
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Categories

Overview

UPC 01981310765
GTiN 00019813107653
Finish Bronze
Color White
Voltage 120-277 Volt
Type TROFFER
Applications INDOOR
Weight 19.5 lb
Wattage 52 Watt
Color Temperature 3500 K
Color Accuracy 83 CRI
Lumens 3976 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Lens Material Acrylic
Amperage 0.19 Amp
Average Rated Life 100000 hr
Input Wattage 50 W
Efficacy 122 LPW
