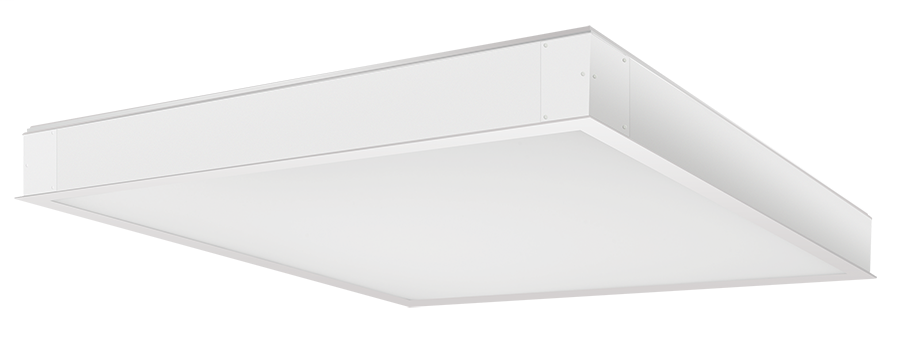

RAB PANEL2X2-41Y LPANEL 2X2 CEILING
$263.57/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # PANEL2X2-41Y
North Coast Part # 1280730

Features

  • High-transmission acrylic lens provides excellent distribution and uniformity
  • UL Listed for damp locations
  • 5-Year, No-Compromise Warranty

Specifications

Performance

  • Watts: 41W
  • Color Temp: 3000K (Warm)
  • Lumens: 4,898
  • Efficacy: 128.6 lm/W
  • Color Accuracy: 82 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.33A
  • 208V: 0.202A
  • 240V: 0.175A
  • 277V: 0.152A
  • Input Watts: 38.1W

Dimensions

  • Weight: 20.4 lbs

Listings

  • UL Listed: Suitable for damp locations. Recommended for indoor use only.
  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: P0000178H
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Construction

  • IC Rating: Suitable for insulated ceilings
  • Lens: High-transmission acrylic lens with excellent distribution and uniformity
  • Housing: Lightweight housing is constructed of extruded aluminum
  • Finish: Formulated for high durability and long-lasting color
  • Quick and Easy Installation: Modular splice box/driver compartment available for quick installation. Integral Tee grid clips make installation easy and secure.
  • Green Technology: Mercury and UV free. RoHS-compliant components.

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • LEDs: Long-life, High efficiency, micro-power, surface mount LEDs; binned and mixed for uniform light output and color
  • Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Other

  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Electrical

  • Driver: Constant Current, Class 2, 100-277V, 50/60Hz, 4KV Surge Protection, 800mA, Power factor 99.5%.
  • THD: 6.5% at 120V, 9.7% at 277V
  • Power Factor: 99.6% at 120V, 92.3% at 277V

Overview

UPC 01981300666
GTiN 00019813006666
Finish Bronze
Voltage 120/277 Volt
Type TROFFER
Applications INDOOR
Weight 20.4 lb
Wattage 41 Watt
Color Temperature 3000 K
Color Accuracy 82 CRI
Lumens 4,898 lm
Shape 2x2
Family Brand Name Rab Design Lighting
Lamp Type LED
Amperage 0.33 Amp
Average Rated Life 100000 hr
Input Wattage 38.1 W
Efficacy 128.6 LPW
