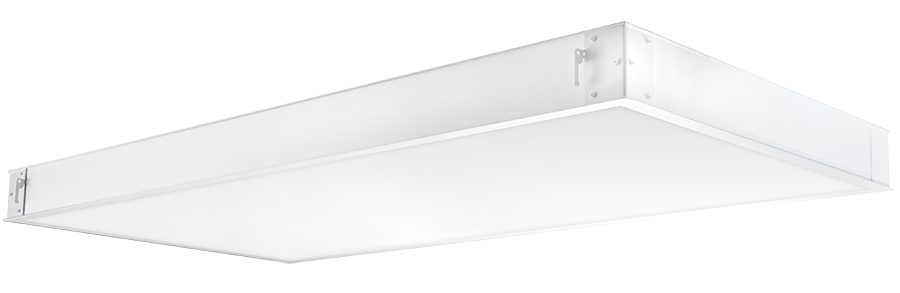

RAB PANEL2X4-44YN/D10 LPANEL 2X4 CE

Features

• Up to 60% savings on energy costs
• High-reflectance (91%) powder coat applied post fabrication for a more durable finish
• Ultra-smooth diffusion lens creates uniform light, edge to edge, for evenly lit spaces
• 100,000-hour LED Lifespan
• 5-year warranty

Specifications

• Color: White

LED Info

• Watts: 44W
• Color Temp: 3500K
• Color Accuracy: 83 CRI
• L70 Lifespan: 100000
• Lumens: 5939
• Efficacy: 133 LPW

Driver Info

• Type: Constant Current
• 120V: 0.37A
• 208V: 0.25A
• 240V: 0.22A
• 277V: 0.19A
• Input Watts: 45W

Dimensions

• Weight: 34.0 lbs

Electrical

• Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
• Drivers: Two (2) Constant Current, Class 2, 100-277V, 50/60Hz, 4kV Surge Protection, 450mA, 100-277V: 0.4A, Power Factor 99.3%
• THD: 7.7% at 120V, 14.0% at 277V
• Power Factor: 99.4% at 120V, 90.0% at 277V

Listings

• DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities.
• UL Listing: Suitable for damp locations. Recommended for indoor use only.
• IESNA LM-79 & LM-80 Testing: RAB LED luminaries have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have received the Department of Energy "Lighting Facts" label.

Construction

• IC Rating: Suitable for insulated ceilings
• Lens: High-transmission acrylic lens with excellent distribution and uniformity.
• Housing: Lightweight housing is constructed of extruded aluminum.
• Installation: Modular splice box/driver compartment for quick installation. Integral Tee-grid ceiling clips make installation easy and secure.
• Finish: Formulated for high-durability and long lasting color.
• Green Technology: Mercury and UV free. RoHS compliant components. Polyester powder coat finish formulated without the use of VOC or toxic heavy metals.

LED Characteristics

• LEDs: Long-life, High efficiency, micro-power, surface mount LEDs; binned and mixed for uniform light output and color.
• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
• Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.

Other

• California Title 24: PANEL2x4-44/D10 complies with 2013 California Title 24 building and electrical codes as a commercial indoor fixture for general spaces when used with a vacancy sensor and 0-10V dimming control. Select a vacancy sensor using catalog number LVS800. 0-10V dimmer provided by others.
• Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish.
• Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
