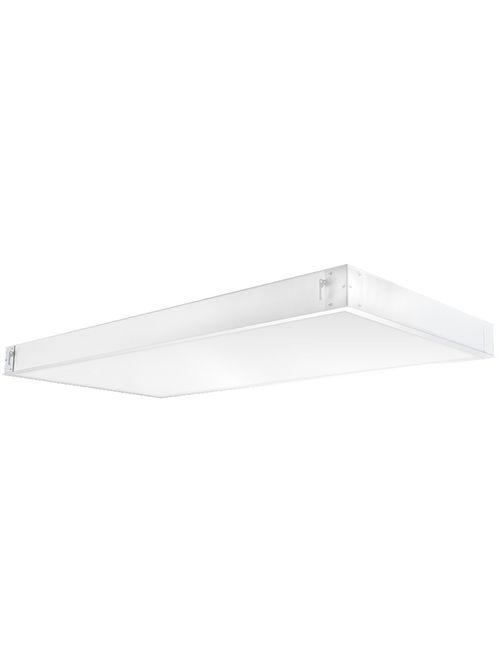

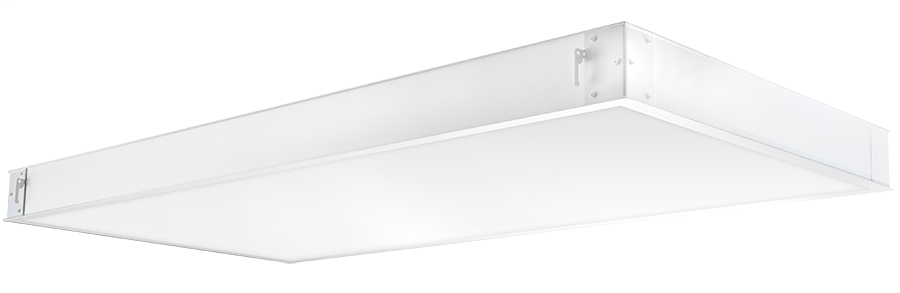

RAB PANEL2X4-59Y LPANEL 2X4 CEILING

Features

• Up to 60% savings on energy costs
• High-reflectance (91%) powder coat applied post fabrication for a more durable finish
• Ultra-smooth diffusion lens creates uniform light, edge to edge, for evenly lit spaces
• 100,000-hour LED Lifespan
• 5-Year, No-Compromise Warranty

Specifications

Performance

• Watts: 59W
• Color Temp: 3000K (Warm)
• Lumens: 8,001
• Efficacy: 135.4 lm/W
• Color Accuracy: 82 CRI
• L70 Lifespan: 100,000 hours
• Type: Constant Current
• 120V: 0.49A
• 208V: 0.32A
• 240V: 0.28A
• 277V: 0.24A
• Input Watts: 59.10W

Dimensions

• Weight: 34.7 lbs

Listings

• UL Listing: Suitable for damp locations. Recommended for indoor use only.
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
• DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: P0000172A

Construction

• IC Rating: Suitable for insulated ceilings
• Lens: High-transmission acrylic lens with excellent distribution and uniformity
• Housing: Lightweight housing is constructed of extruded aluminum
• Installation: Modular splice box/driver compartment for quick installation. Integral Tee-grid ceiling clips make installation easy and secure.
• Finish: Formulated for high durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.

LED Characteristics

• LEDs: Long-life, High efficiency, micro-power, surface mount LEDs; binned and mixed for uniform light output and color
• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Other

• Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
• Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Electrical

• Drivers: Two (2) Constant Current, Class 2, 100-277V, 50/60Hz, 4kV Surge Protection, 620mA, 100-277V: 0.6A, Power Factor 99.6%
• THD: 6.6% at 120V, 10.5% at 277V
• Power Factor: 99.5% at 120V, 90.8% at 277V
