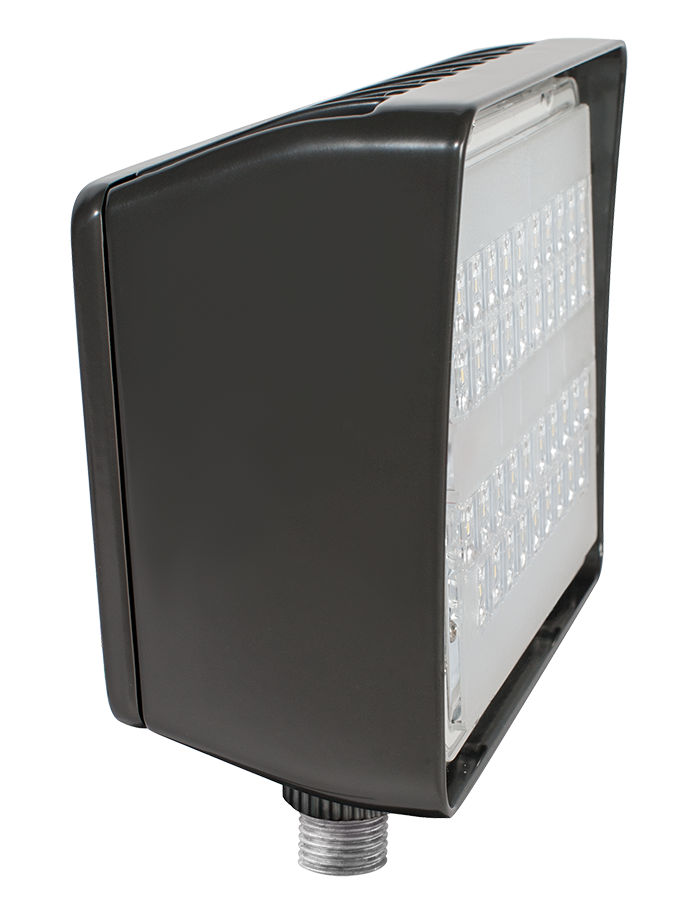

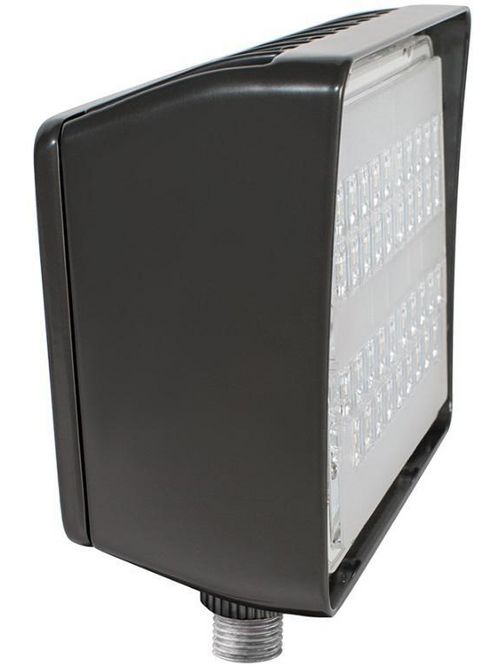

RAB PIP20N/D10 PIPFLOOD 20W 4000K
$154.20/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # PIP20N/D10
North Coast Part # 1342904

Features

  • 60,000-hour LED lifespan
  • Standard 0-10V dimming driver
  • 5-Year, Limited Warranty

Specifications

Performance

  • Watts: 20W
  • Color Temp: 4000K (Neutral)
  • Lumens: 2,796
  • Efficacy: 140.5 lm/W
  • Color Accuracy: 72 CRI
  • L70 Lifespan: 60,000 hours
  • Type: Constant Current
  • 120V: 0.16A
  • 208V: 0.10A
  • 240V: 0.09A
  • 277V: 0.08A
  • Input Watts: 19.90W

Dimensions

  • Weight: 3.7 lbs

Listings

  • UL Listing: Suitable for wet locations
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: PBXB646Q

Electrical

  • Driver: Constant Current, Class 2, 50/60 Hz, 2kV, 120 - 277VAC 120: 0.16A, 208V: 0.10A, 240V: 0.09A, 277V: 0.08A
  • Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
  • THD: 12.8% at 120V, 14.1% at 277V
  • Power Factor: 99% at 120V, 95.4% at 277V
  • Note: All values are typical (tolerance +/- 10%)

LED Characteristics

  • LEDs: Long-life, high-efficacy surface mount LEDs
  • Lifespan: 60,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Optical

  • NEMA Type: 7H x 6V Beam Spread

Construction

  • IP Rating: Ingress Protection rating of IP66 for dust and water
  • Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Housing: Precision die-cast aluminum housing and mounting arm
  • Lens: Frosted acrylic
  • Mounting: Mounting arm with "O" ring seal, wire seal plug and stainless steel screw
  • Gaskets: High-temperature silicone gaskets
  • Green Technology: Mercury and UV free. RoHS-compliant components.
  • Finish: Formulated for high durability and long-lasting color

Other

  • 5 Yr Limited Warranty: The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at
  • Equivalency: Equivalent to 100W Metal Halide
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981349475
GTiN 00019813494753
Finish Bronze
Voltage 120/277 Volt
Type FLOODLIGHT
Applications OUTDOOR
Weight 3.7 lb
Wattage 20 Watt
Color Accuracy 72 CRI
Lumens 2,796 lm
Family Brand Name Rab Design Lighting
Amperage 0.1 Amp
Average Rated Life 60,000 hr
Input Wattage 19.90 W
Power Factor 99% At 120V,95.4% At 277V
Efficacy 140.5 LPW
Total Harmonic Distortion 14.1% At 277V,12.8% At 120V
