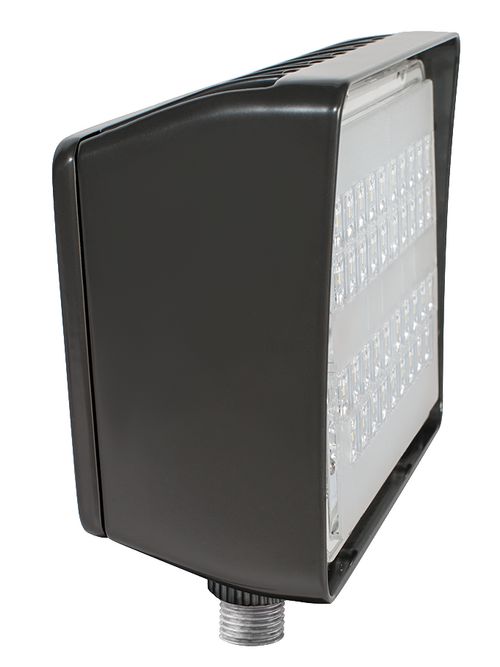

RAB PIP30N/D10/PCU PIPFLOOD 30W 400
Product image thumbnail 0
Product image thumbnail 1
$219.54/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # PIP30N/D10/PCU
North Coast Part # 1434900

Features

  • 60,000-hour LED lifespan
  • Standard 0-10V dimming driver
  • 5-Year, Limited Warranty

Specifications

Performance

  • Watts: 30W
  • Color Temp: 4000K (Neutral)
  • Lumens: 4,265
  • Efficacy: 136.7 lm/W
  • Color Accuracy: 72 CRI
  • L70 Lifespan: 60,000 hours
  • Type: Constant Current
  • 120V: 0.26A
  • 208V: 0.16A
  • 240V: 0.14A
  • 277V: 0.12A
  • Input Watts: 31.20W

Dimensions

  • Weight: 3.7 lbs

Listings

  • UL Listing: Suitable for wet locations
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: PAY4P3TP

Electrical

  • Driver: Constant Current, Class 2, 50/60 Hz, 2kV, 120 - 277VAC 120: 0.26A, 208V: 0.16A, 240V: 0.14A, 277V: 0.12A
  • Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
  • THD: 10.5% at 120V, 17% at 277V
  • Power Factor: 98.8% at 120V, 91.6% at 277V
  • Note: All values are typical (tolerance +/- 10%)
  • Photocell: 120-277V Button Photocell Included. Photocell is compatible with 120V-277V.

LED Characteristics

  • LEDs: Long-life, high-efficacy surface mount LEDs
  • Lifespan: 60,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Optical

  • NEMA Type: 7H x 6V Beam Spread

Construction

  • IP Rating: Ingress Protection rating of IP66 for dust and water
  • Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Housing: Precision die-cast aluminum housing and mounting arm
  • Lens: Frosted acrylic
  • Mounting: Mounting arm with "O" ring seal, wire seal plug and stainless steel screw
  • Gaskets: High-temperature silicone gaskets
  • Green Technology: Mercury and UV free. RoHS-compliant components.
  • Finish: Formulated for high durability and long-lasting color

Other

  • 5 Yr Limited Warranty: The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at
  • Equivalency: Equivalent to 150W Metal Halide
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981349500
GTiN 00019813495002
Finish Bronze
Voltage 120/277 Volt
Type FLOODLIGHT
Applications OUTDOOR
Weight 3.7 lb
Wattage 30 Watt
Color Accuracy 72 CRI
Lumens 4265 lm
Family Brand Name Rab Design Lighting
Amperage 0.12 Amp
Average Rated Life 60,000 hr
Input Wattage 31.20 W
Power Factor 91.6% At 277V,98.8% At 120V
Efficacy 136.7 LPW
Total Harmonic Distortion 10.5% At 120V,17% At 277V
