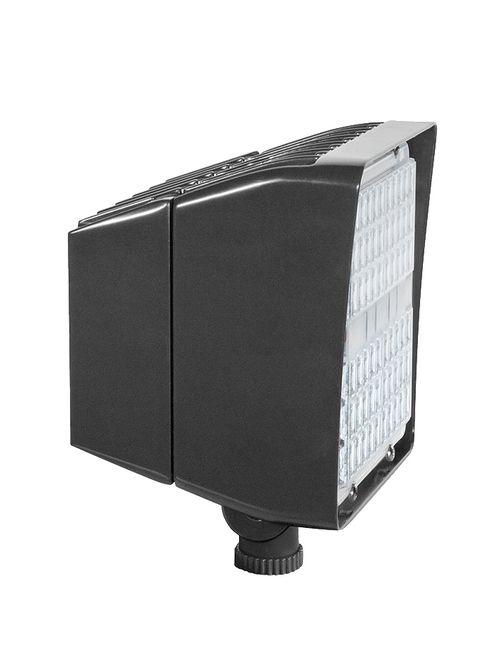

RAB PIP45/D10 PIPFLOOD 45W 5000K L
Product image thumbnail 0
Product image thumbnail 1
$206.47/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # PIP45/D10
North Coast Part # 1426664

Features

  • 0-10V Dimming, standard
  • Replaces 150W MH
  • 60,000-Hour LED lifespan
  • 5-Year, Limited Warranty

Specifications

Performance

  • Watts: 45W
  • Color Temp: 5000K (Cool)
  • Lumens: 6,387
  • Efficacy: 129.3 lm/W
  • Color Accuracy: 78 CRI
  • L70 Lifespan: 60,000 hours
  • Type: Constant Current
  • 120V: 0.42A
  • 208V: 0.26A
  • 240V: 0.22A
  • 277V: 0.19A
  • Input Watts: 49.40W

Dimensions

  • Weight: 4.6 lbs

Listings

  • UL Listing: Suitable for wet locations. Suitable for ground mounting.
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: PSRDR38U

Electrical

  • Driver: Constant Current, Class 2, 50/60 Hz, 2kV, 120 - 277VAC 120: 0.42A, 208V: 0.26A, 240V: 0.22A, 277V: 0.19A
  • Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
  • THD: 11.5% at 120V, 14.7% at 277V
  • Power Factor: 99% at 120V, 94.2% at 277V
  • Surge Protection: +/- 1kV line to line (differential mode)/ +/- 2kV line to common mode ground (tested to secondary ground) on AC power port, +/- 0.5 kV for outdoor cables
  • Note: All values are typical (tolerance +/- 10%)

LED Characteristics

  • LEDs: Long-life, high-efficacy surface mount LEDs
  • Lifespan: 60,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Optical

  • NEMA Type: 7H x 6V Beam Spread

Construction

  • IP Rating: Ingress Protection rating of IP66 for dust and water
  • Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Housing: Precision die-cast aluminum housing and mounting arm
  • Lens: Frosted acrylic lens with built-in optics
  • Mounting: Mounting arm with "O" ring seal, seal plug and stainless steel screw
  • Gaskets: High-temperature silicone gaskets
  • Green Technology: Mercury and UV free. RoHS-compliant components.
  • Finish: Formulated for high durability and long-lasting color

Other

  • 5 Yr Limited Warranty: The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at
  • Equivalency: Equivalent to 250W Metal Halide
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981326564
GTiN 00019813265643
Finish Bronze
Voltage 120/277 Volt
Type FLOODLIGHT
Applications OUTDOOR
Weight 4.6 lb
Wattage 45 Watt
Color Temperature 5000 K
Color Accuracy 78 CRI
Lumens 6387 lm
Family Brand Name Rab Design Lighting
Amperage 0.19 Amp
Average Rated Life 60,000 hr
Input Wattage 49.40 W
Power Factor 94.2% At 277V,99% At 120V
Efficacy 129.3 LPW
Total Harmonic Distortion 11.5% At 120V,14.7% At 277V
