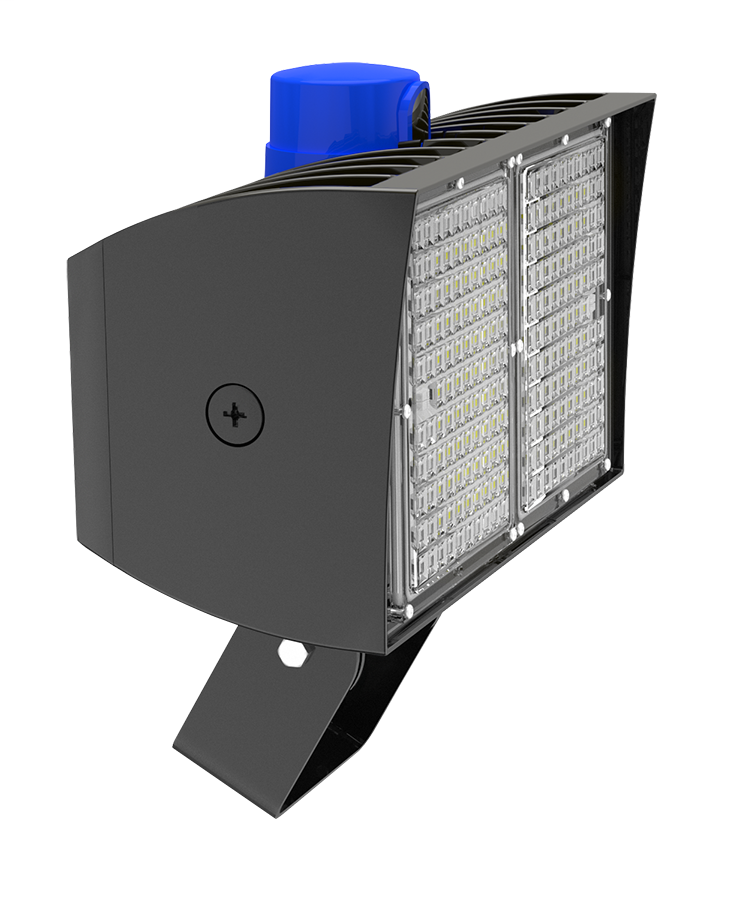

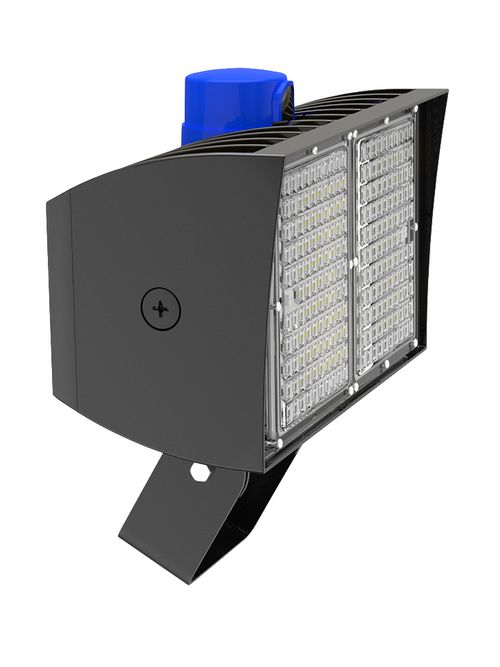

RAB PIPXL100T/D10/PCT PIPXL 100CLLE

Features

• Ultra-high efficiency
• DLC Premium
• 0-10V Dimming, standard
• 60,000-Hour LED lifespan
• 5-Year, Limited Warranty

Specifications

Performance

• Watts: 100W
• Color Temp: 5000K (Cool)
• Lumens: 15,839
• Efficacy: 143 lm/W
• Color Accuracy: 78 CRI
• L70 Lifespan: 60,000 hours
• Type: Constant Current
• 120V: 0.93A
• 208V: 0.56A
• 240V: 0.49A
• 277V: 0.41A
• Input Watts: 110.80W

Dimensions

• Weight: 20.6 lbs

Listings

• UL Listing: Suitable for wet locations. Suitable for ground mounting.
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
• DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: P2PSU64X

Electrical

• Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
• Power Factor: 96.9% at 480V
• Surge Protection: 4kV
• Note: All values are typical (tolerance +/- 10%)
• Photocell: 120-277V twistlock photocell included. Photocell is compatible with 120-277V.

LED Characteristics

• LEDs: Long-life, high-efficacy surface mount LEDs
• Lifespan: 60,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Optical

• NEMA Type: 7H x 6V Beam Spread

Construction

• IP Rating: Ingress Protection rating of IP66 for dust and water
• Thermal Management: Superior thermal management with external "Air-Flow" fins
• Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
• Cold Weather Starting: The minimum starting temperature is -30°C (-22°F)
• Housing: Precision die-cast aluminum housing
• Lens: Two (2) clear acrylic lens with integrated optics
• Mounting: Heavy-duty Trunnion mount with stainless steel hardware
• Effective Projected Area: EPA = 1.2
• Gaskets: High-temperature silicone gaskets
• Green Technology: Mercury and UV free. RoHS-compliant components.
• Finish: Formulated for high durability and long-lasting color

Other

• 5 Yr Limited Warranty: The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at
• Equivalency: Equivalent to 750W Pulse Start Metal Halide
• Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
