Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing

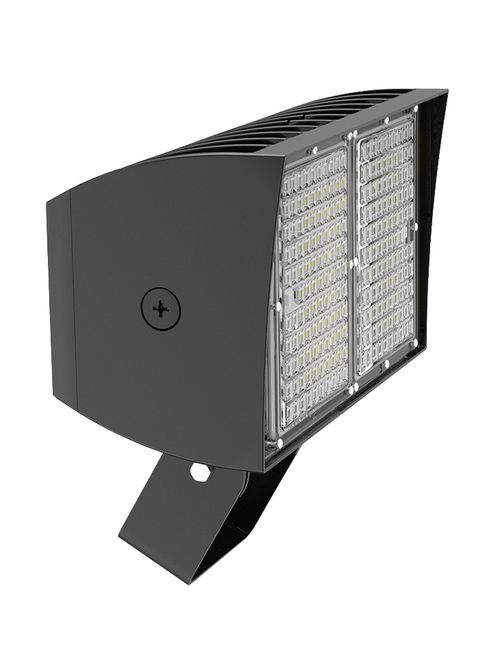

Manufacturer RAB Lighting
Mfg Catalog # PIPXL70TY/D10
North Coast Part # 1832926


  • Ultra-high efficiency
  • DLC Premium
  • 0-10V Dimming, standard
  • 60,000-Hour LED lifespan
  • 5-Year, Limited Warranty



  • Watts: 70W
  • Color Temp: 3000K (Warm)
  • Lumens: 10,777
  • Efficacy: 143.9 lm/W
  • Color Accuracy: 73 CRI
  • L70 Lifespan: 60,000 hours
  • Type: Constant Current
  • 120V: 0.63A
  • 208V: 0.39A
  • 240V: 0.34A
  • 277V: 0.29A
  • Input Watts: 74.90W


  • Weight: 20.6 lbs


  • UL Listing: Suitable for wet locations. Suitable for ground mounting.
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: PDGH2UK8


  • Driver: Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 2.17A, 208V: 1.29A, 240V: 1.12A, 277V 0.93A
  • Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
  • THD: 7.2% at 120V, 8.6% at 277V
  • Surge Protection: 4kV
  • Note: All values are typical (tolerance +/- 10%)

LED Characteristics

  • LEDs: Long-life, high-efficacy surface mount LEDs
  • Lifespan: 60,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.


  • NEMA Type: 7H x 6V Beam Spread


  • IP Rating: Ingress Protection rating of IP66 for dust and water
  • Thermal Management: Superior thermal management with external "Air-Flow" fins
  • Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
  • Cold Weather Starting: The minimum starting temperature is -30°C (-22°F)
  • Housing: Precision die-cast aluminum housing
  • Lens: Two (2) clear acrylic lens with integrated optics
  • Mounting: Heavy-duty Trunnion mount with stainless steel hardware
  • Effective Projected Area: EPA = 1.2
  • Gaskets: High-temperature silicone gaskets
  • Green Technology: Mercury and UV free. RoHS-compliant components.
  • Finish: Formulated for high durability and long-lasting color


  • 5 Yr Limited Warranty: The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at
  • Equivalency: Equivalent to 400W Metal Halide
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.


GTiN 00019813561394
Finish Bronze
Voltage 120/277 Volt
Applications OUTDOOR
Weight 20.6 lb
Wattage 70 Watt
Color Temperature 3000 K
Color Accuracy 73 CRI
Lumens 10777 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Amperage 0.29 Amp
Average Rated Life 60,000 hr
Input Wattage 74.90 W
Efficacy 143.9 LPW
Total Harmonic Distortion 7.2% At 120V,8.6% At 277V
Product UPC 01981356139
