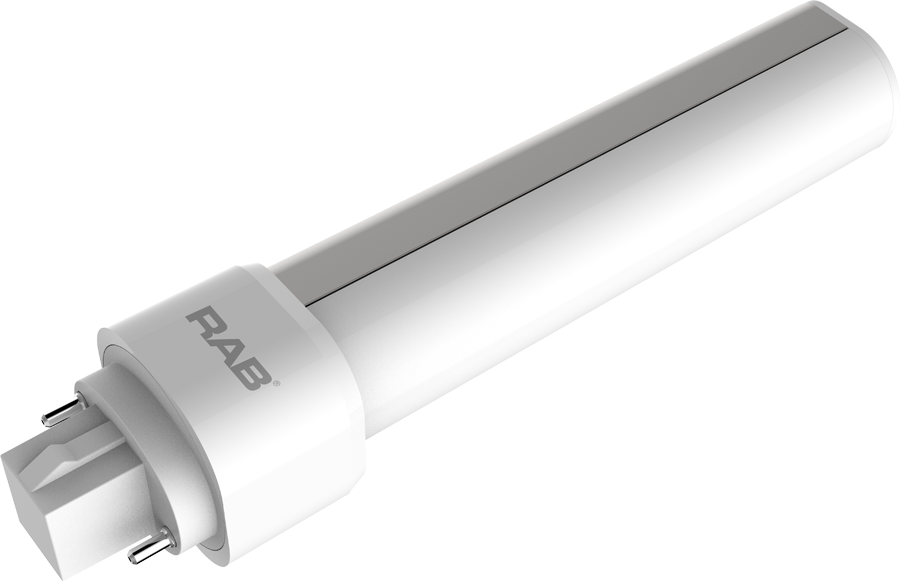

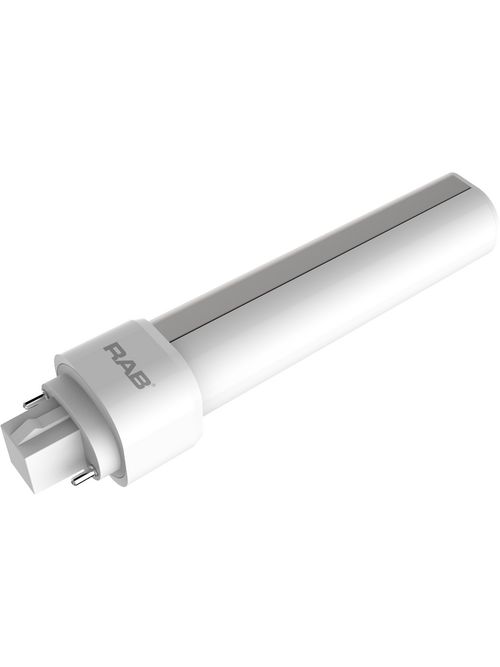

RAB PLC-9-H-840-BYP LED PLC 9W Hori
$22.15/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # PLC-9-H-840-BYP
North Coast Part # 1685398

Features

  • Replace conventional fluorescent lamps
  • Approximately 40% more energy efficient than conventional pin-based CFLs with G24q base
  • Instant on, no flicker or hum
  • Bypass ballast to eliminate maintenance costs or use existing ballast
  • 111+ lm/W
  • Environmentally friendly: No mercury used

Specifications

Performance

  • Watts: 9W
  • Color Temp: 4000K (Cool White)
  • Lumens: 1,000
  • Efficacy: 111.1 lm/W
  • Color Accuracy: 82 CRI
  • L70 Lifespan: 50,000 hours
  • Input Voltage: 120-277
  • Power Factor: 0.9

Dimensions

  • Weight: 0.3 lbs

Technical Specifications

  • Product Type: Compact
  • Bulb Shape: PLC
  • Finish: Frosted
  • Wattage: 9W
  • Wattage Equivalency: 26W Fluorescent
  • Typical Lumen Output: 1000
  • Efficacy: 111 lm/W
  • Color Temperature: 4000K Cool White
  • CRI: 82
  • Base Type: G24d
  • L70 Lifespan: 50,000 hours
  • Operating Temperature: -20°C - 45°C
  • Dimmable: No
  • Warranty: 5-Year, No-Compromise Warranty
  • Installation Type: Type B, Ballast Bypass
  • Installation Orientation: Horizontal
  • For Use in Emergency Fixtures: No
  • For Use Outdoors in Open Fixtures: No

Electrical Characteristics

  • Input Voltage: 120-277V
  • Power Factor: 0.9
  • Operating Frequency: 50 / 60 Hz
  • THDi: <20%

Listings

  • UL Recognized: Yes
  • UL Classified: Yes
  • CEC Status: Lawful for sale in California

Categories

Overview

UPC 01981375153
GTiN 00019813751535
Finish Frosted
Warranty Length 5 yr
Color 4000 K
Operating Temperature -20 C
Voltage 120-277 Volt
Type LAMPS
Weight 0.3 lb
Wattage 9 Watt
Color Temperature 4000 K
Color Accuracy 82 CRI
Lumens 1,000 lm
Base G24d
Input Voltage 120-277 V
Shape PLC/T
Family Brand Name Rab Design Lighting
Dimmable? No
Average Rated Life 50,000 hr
Power Factor 0.9
Efficacy 111 LPW
Color Rendering Index 82 CRI
