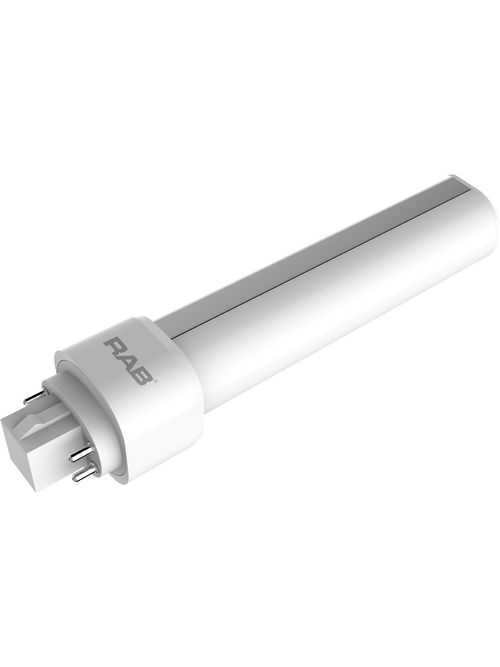

RAB PLC-9-H-840-DIR LED PLC 9W Hori
$22.15/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # PLC-9-H-840-DIR
North Coast Part # 1684617

Specifications

Performance

  • Watts: 9W
  • Color Temp: 4000K (Cool White)
  • Lumens: 1,000
  • Efficacy: 111.1 lm/W
  • Color Accuracy: 82 CRI
  • L70 Lifespan: 50,000 hours
  • Input Voltage: Ballast Dependent
  • Power Factor: Ballast Dependent

Dimensions

  • Weight: 0.3 lbs

Technical Specifications

  • Product Type: Compact
  • Bulb Shape: PLC
  • Finish: Frosted
  • Wattage: 9W
  • Wattage Equivalency: 26W Fluorescent
  • Typical Lumen Output: 1000
  • Efficacy: 111 lm/W
  • Color Temperature: 4000K Cool White
  • CRI: 82
  • Base Type: G24q
  • L70 Lifespan: 50,000 hours
  • Operating Temperature: -20°C - 45°C
  • Dimmable: No
  • Warranty: 5-Year, No-Compromise Warranty
  • Installation Type: Type A, Plug and Play
  • Installation Orientation: Horizontal
  • For Use in Emergency Fixtures: No
  • For Use Outdoors in Open Fixtures: No

Electrical Characteristics

  • Input Voltage: Ballast Dependent
  • Power Factor: Ballast Dependent
  • Operating Frequency: Ballast Dependent
  • THDi: <20%

Listings

  • UL Listed: Yes
  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
  • DLC Product Code: PZWJK24U
  • CEC Status: Lawful for sale in California

Overview

UPC 01981375145
GTiN 00019813751450
Finish Frosted
Warranty Length 5 yr
Color 4000 K
Operating Temperature 45 C
Type LAMPS
Weight 0.3 lb
Wattage 9 Watt
Color Temperature 4000 K
Color Accuracy 82 CRI
Lumens 1,000 lm
Base G24q
Shape PLC/T
Family Brand Name Rab Design Lighting
Dimmable? No
Average Rated Life 50,000 hr
Power Factor Ballast Dependent
Efficacy 111.1 LPW
Color Rendering Index 82 CRI
