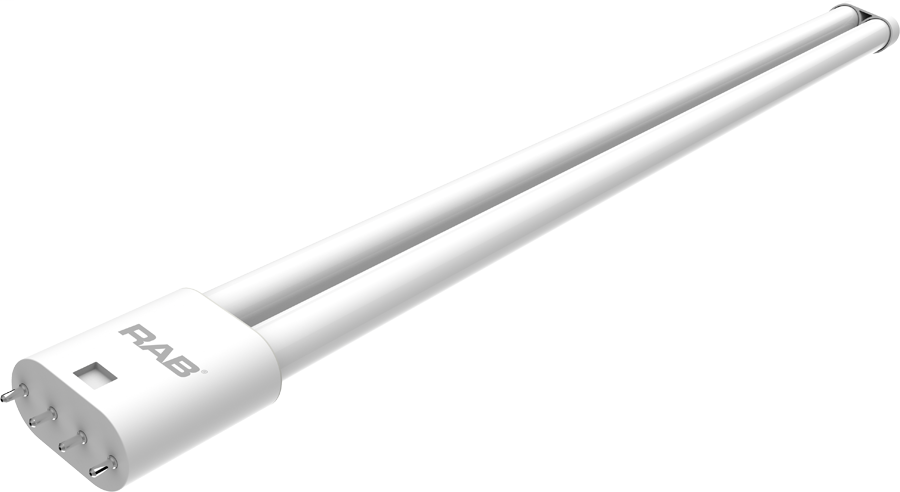

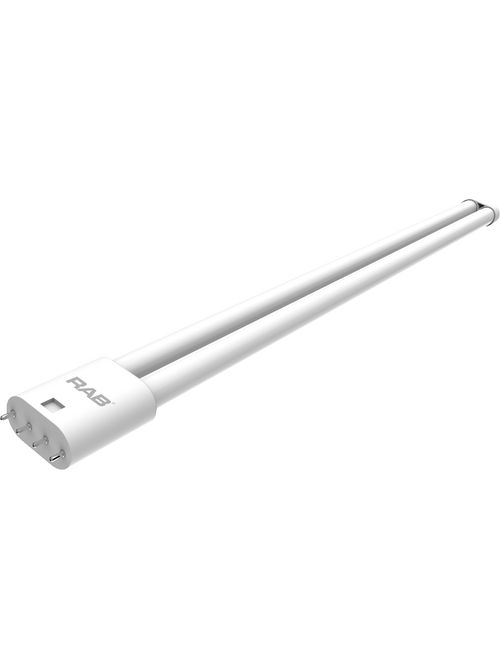

RAB PLL-17-840-BYP LED PLL 17W 4K 2
$24.36/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # PLL-17-840-BYP
North Coast Part # 1680360

Specifications

Performance

  • Watts: 17W
  • Color Temp: 4000K (Cool White)
  • Lumens: 2,200
  • Efficacy: 129.4 lm/W
  • Color Accuracy: 82 CRI
  • L70 Lifespan: 50,000 hours
  • Input Voltage: 120-277
  • Power Factor: 0.9

Dimensions

  • Weight: 0.6 lbs

Technical Specifications

  • Product Type: Compact
  • Bulb Shape: PLL
  • Finish: Frosted
  • Wattage: 17W
  • Wattage Equivalency: 40W Fluorescent
  • Typical Lumen Output: 2200
  • Efficacy: 129 lm/W
  • Color Temperature: 4000K Cool White
  • CRI: 82
  • Base Type: 2G11
  • L70 Lifespan: 50,000 hours
  • Operating Temperature: -20°C - 45°C
  • Dimmable: No
  • Warranty: 5-Year, No-Compromise Warranty
  • Installation Type: Type B, Ballast Bypass
  • Installation Orientation: Horizontal
  • For Use in Emergency Fixtures: No
  • For Use Outdoors in Open Fixtures: No

Electrical Characteristics

  • Input Voltage: 120-277V
  • Power Factor: 0.9
  • Operating Frequency: 50 / 60 Hz
  • THDi: <20%

Listings

  • UL Recognized: Yes
  • UL Classified: Yes
  • DLC Product Code: PJMAWKQ7
  • CEC Status: Lawful for sale in California

Overview

UPC 01981375161
GTiN 00019813751610
Finish Frosted
Warranty Length 5 yr
Color 4000 K
Operating Temperature -20 C
Voltage 120-277 Volt
Type LAMPS
Weight 0.6 lb
Wattage 17 Watt
Color Temperature 4000 K
Color Accuracy 82 CRI
Lumens 2,200 lm
Base 2G11
Input Voltage 120-277 V
Shape PLL
Family Brand Name Rab Design Lighting
Dimmable? No
Average Rated Life 50,000 hr
Power Factor 0.9
Efficacy 129 LPW
Color Rendering Index 82 CRI
