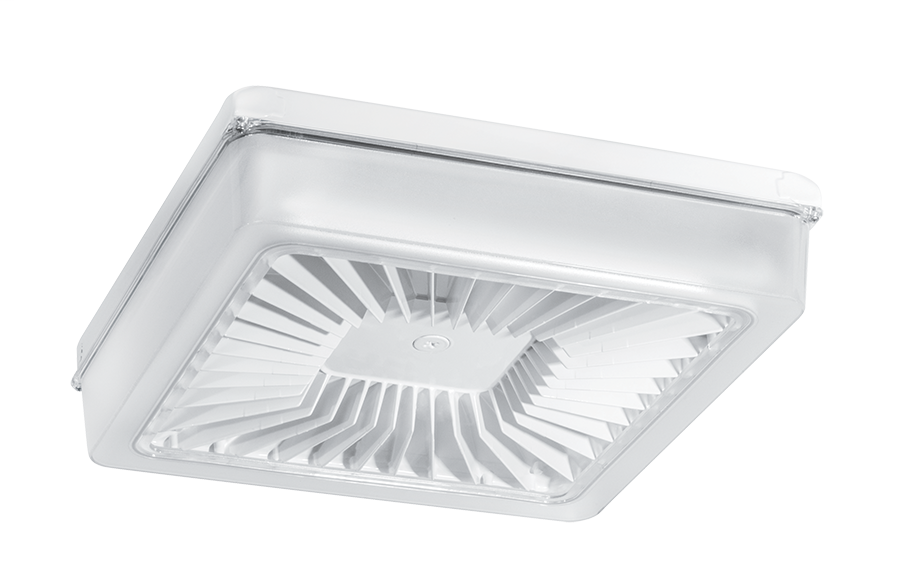

RAB PRT105NW/D10 PORTO XL 18IN 105W
$755.30/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # PRT105NW/D10
North Coast Part # 1889339

Features

  • Ultra-high efficiency
  • Pendant or surface mount
  • Low glare, vandal-resistant polycarbonate lens
  • 20% uplight eliminates "cave effect"
  • 100,000-Hour LED lifespan
  • 5-Year, No-Compromise Warranty

Specifications

Performance

  • Watts: 105W
  • Color Temp: 4000K (Neutral)
  • Lumens: 12,076
  • Efficacy: 115.2 lm/W
  • Color Accuracy: 77 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.87A
  • 208V: 0.52A
  • 240V: 0.45A
  • 277V: 0.39A
  • Input Watts: 104.80W

Dimensions

  • Weight: 19.6 lbs

Listings

  • UL Listing: Suitable for wet locations
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PXHP6SQV

Construction

  • IP Rating: Ingress Protection rating of IP66 for dust and water
  • Lens: Frosted polycarbonate
  • Gaskets: High-temperature silicone
  • Ambient Temperature: Suitable For use in 40°C (104°F)
  • Finish: Formulated for high durability and long-lasting color
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Thermal Management: Superior thermal management with external "Air-Flow" fins
  • Housing: Die-cast aluminum and sheetmetal housing. Polycarbonate is affected by cleaning agents or other liquids containing partial solvents such as low molecular weight aldehydes and ethers, ketones, esters, aromatic hydrocarbons and perchlorinated hydrocarbons.
  • Mounting: Die-cast aluminum backbox with (4) 1/2" conduit openings with plugs. Hinged tether for easy installation and wiring. Also accomodates 1/2" or 3/4" NPS pendants (provided by others).
  • Reflector: Specular polycarbonate
  • Green Technology: Mercury and UV free. RoHS-compliant components.

LED Characteristics

  • LEDs: Long-life, high-efficacy surface mount LEDs
  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Lightcloud

  • Lightcloud Compatibility: This product is compatible with the

Other

  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Equivalency: Equivalent to 250W Metal Halide
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Electrical

  • Driver: Constant current, Class 2, 100 - 277V and 480V, 50/60 Hz, 120V: 0.87A, 208V: 0.52A, 240V: 0.45A, 277V: 0.38A, 480V: 0.23A, surge protection 4kV, THD ≤ 20%, pF 90%
  • Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
  • THD: 2.4% at 120V, 6% at 277V
  • Power Factor: 99.9% at 120V, 95.8% at 277V

Sensor Specifications

  • Handheld Wireless Configuration Tool: Adjust settings using handheld wireless configuration tool. Only available with 0-10V dimming driver options.

Categories

Overview

UPC 01981332546
GTiN 00019813325460
Finish WHITE
Voltage 120-277 Volt
Type GARAGE/CANOPY
Applications OUTDOOR
Weight 19.6 lb
Wattage 105 Watt
Color Accuracy 77 CRI
Lumens 12,076 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Amperage 0.39 Amp
Average Rated Life 100,000 hr
Input Wattage 104.80 W
Power Factor 95.8% At 277V,99.9% At 120V
Efficacy 115.2 LPW
Total Harmonic Distortion 2.4% At 120V,6% At 277V
Color White
