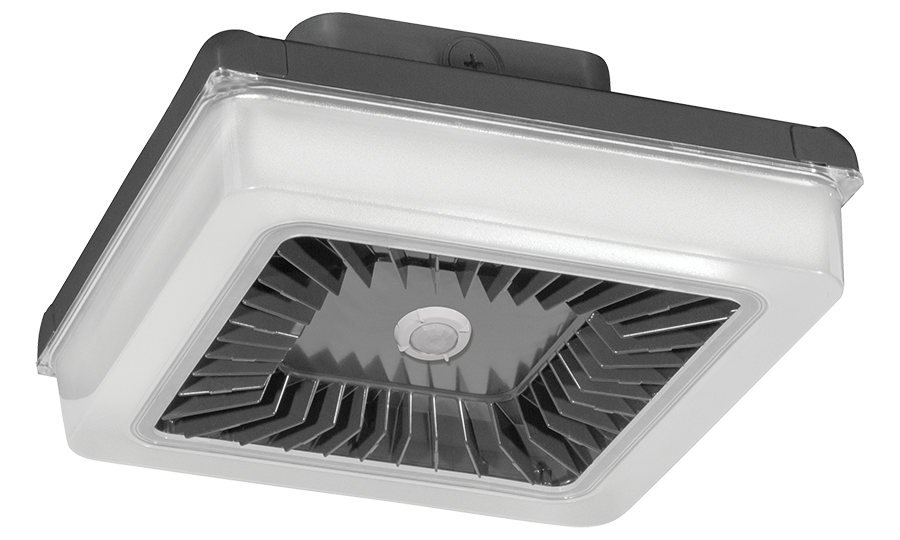

RAB PRT30Y/D10/WS PORTO 14IN 30W WA
$650.76/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # PRT30Y/D10/WS
North Coast Part # 1278762

Features

  • Ultra-high efficiency
  • Pendant or surface mount
  • Low glare, vandal-resistant polycarbonate lens
  • 20% uplight eliminates "cave effect"
  • 100,000-Hour LED lifespan
  • 5-Year, No-Compromise Warranty

Specifications

Performance

  • Watts: 30W
  • Color Temp: 3000K (Warm)
  • Lumens: 3,713
  • Efficacy: 125.9 lm/W
  • Color Accuracy: 74 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.25A
  • 208V: 0.13A
  • 240V: 0.12A
  • 277V: 0.11A
  • Input Watts: 29.50W

Dimensions

  • Weight: 10.6 lbs

Listings

  • UL Listing: Suitable for wet locations
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • California Title 24: Can be used to conform with the requirements of California Title 24 Part 6.
  • DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: PRV7WRVH

Construction

  • Lens: Frosted polycarbonate
  • Gaskets: High-temperature silicone
  • IP Rating: Ingress Protection rating of IP66 for dust and water
  • Ambient Temperature: Suitable For use in 40°C (104°F)
  • Finish: Formulated for high durability and long-lasting color
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Thermal Management: Superior thermal management with external "Air-Flow" fins
  • Housing: Die-cast aluminum and sheetmetal housing. Polycarbonate is affected by cleaning agents or other liquids containing partial solvents such as low molecular weight aldehydes and ethers, ketones, esters, aromatic hydrocarbons and perchlorinated hydrocarbons.
  • Mounting: Die-cast aluminum backbox with (4) 1/2" conduit openings with plugs. Hinged tether for easy installation and wiring. Also accomodates 1/2" or 3/4" NPS pendants (provided by others).
  • Reflector: Specular polycarbonate
  • Green Technology: Mercury and UV free. RoHS-compliant components.

LED Characteristics

  • LEDs: Long-life, high-efficacy surface mount LEDs
  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Other

  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Equivalency: Equivalent to 100W Metal Halide
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Electrical

  • Drivers: Constant Current, Class 2 100V - 277V, 50/60 Hz. THD <20%.
  • Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
  • THD: 7.4% at 120V, 17.1% at 277V
  • Power Factor: 99.2% at 120V, 90.9% at 277V

Sensor Specifications

  • Operating Voltage: 120-277V
  • Power Consumption: 1W
  • 0-10V Sinking Current: 50mA
  • Adjustable High and Low Modes: High: 0-10V; Low: off, 0-9.8V
  • Adjustable Time Delay: Amount of time in high mode with no motion before switching to low mode: 5 min., 1 -30 min.
  • Adjustable Cut Off Delay: Time in which the fixture will remain on low mode with no motion before turning off and waiting for new motion to turn on: None, 1 -60 min., 1 -5 hrs.
  • Adjustable Sensitivy: None, low, medium, maximum
  • Adjustable Setpoint: None, 1 to 250 fc, auto
  • Operating Temperature: -40°F to 167°F (-40°C to +75°C)
  • Operating Humidity: 20% to 90% noncondensing
  • Relay Life Rating: 200,000 cycles (120/277VAC), 50,000 cycles (230VAC)
  • IP Rating: Ingress Protection rating of IP66 for dust and water
  • UL Listing: Suitable for Wet Locations as factory installed
  • Handheld Wireless Configuration Tool: Adjust settings using handheld wireless configuration tool. Only available with 0-10V dimming driver options.

Overview

UPC 01981328210
GTiN 00019813282107
Finish WHITE
Size 4 in
Operating Temperature -40 To 167 F
Voltage 120/277 Volt
Type GARAGE/CANOPY
Applications OUTDOOR
Weight 10.6 lb
Wattage 30 Watt
Operating Voltage 120-277 V
Color Temperature 3000 K
Color Accuracy 74 CRI
Lumens 3,713 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Amperage 0.25 Amp
Average Rated Life 100,000 hr
Input Wattage 29.50 W
Power Factor 99.2% At 120V,90.9% At 277V
Efficacy 125.9 LPW
Total Harmonic Distortion 7.4% At 120V,17.1% At 277V
Color Bronze
