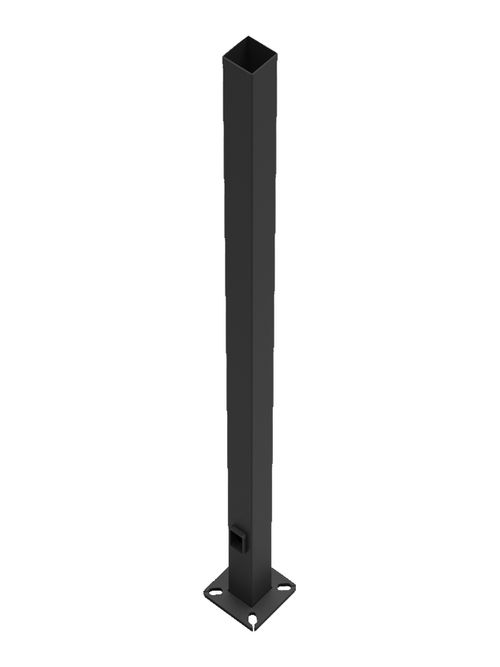

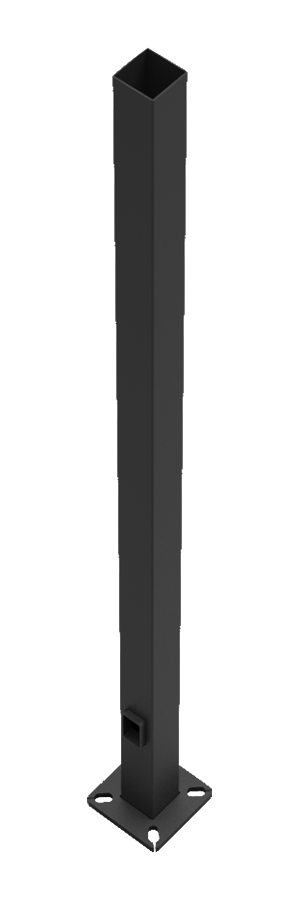

RAB PS4-07-30D2 POLE 4 Inch SQUARE

Features

• Designed for ground mounting
• Heavy duty TGIC polyester coating
• Reinforced hand holes with grounding lug and removable cover for easy wiring access
• Anchor Bolt Kit includes pole cap and base cover (sold separately)
• Custom manufactured for each application

Specifications

Dimensions

• Weight: 286.0 lbs

Listings

• CSA Listed: Suitable for wet locations

Construction

• Shaft: 46,000 p.s.i. minimum yield.
• Hand Holes: Reinforced with grounding lug and removable cover
• Base Plates: Slotted base plates 36,000 p.s.i.
• Shipping Protection: All poles are shipped in individual corrugated cartons to prevent finish damage
• Color: Bronze powder coating
• Height: 30 FT
• Gauge: 7
• Shaft Size: 4"
• Hand Hole Dimensions: 3" x 5"
• Bolt Circle: 8 1/2"
• Base Dimension: 8"
• Weight: 286 lbs
• Anchor Bolt: Galvanized anchor bolts and galvanized hardware and anchor bolt template
• Anchor Bolt Templates: WARNING Template must be printed on 11" x 17" sheet for actual size. CHECK SCALE BEFORE USING. Templates shipped with anchor bolts and available
• Pre-Shipped Anchor Bolts: Bolts can be pre-shipped upon request for additional freight charge
• Max EPA's/Max Weights: 70MPH 5.8 ft./145 lb. 80MPH 3.2 ft./80 lb. 90MPH 1.4 ft./35 lb..
• Accessories: Anchor Bolts:

Other

• Terms of Sale: Pole Terms of Sale is available
• Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
