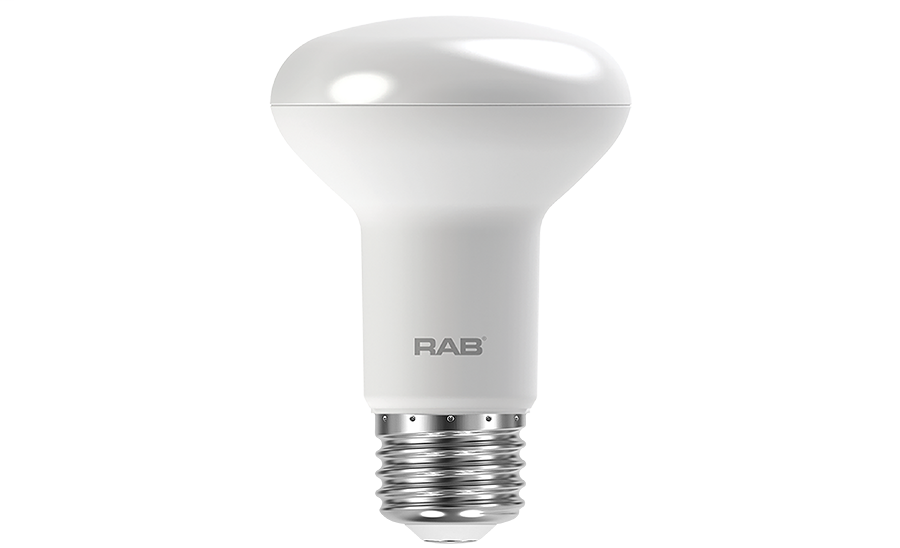

RAB R20-7-830-DIM R20 7W 50EQ 525lm
$7.76/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # R20-7-830-DIM
North Coast Part # 1829951

Features

  • REFLECTOR REPLACEMENT - Replacement for incandescent and halogen R reflector lamps
  • ENERGY SAVINGS - Save up to 85% on energy
  • 25,000-HOUR LIFESPAN - Long-life product
  • DAMP RATED - Suitable for damp locations
  • ENCLOSED FIXTURE RATED - May be used in both enclosed and open fixtures
  • DIMMABLE - Compatible with most common dimmer models
  • SHATTERPROOF - Plastic lamps for rugged applications
  • 110°+ BEAM ANGLE - Wide beam angle for maximum light distribution
  • 80 CRI - Ideal for general lighting applications

Specifications

Performance

  • Watts: 7W
  • Color Temp: 3000K (Warm White)
  • Lumens: 525
  • Efficacy: 75 lm/W
  • Color Accuracy: 80 CRI
  • L70 Lifespan: 25,000 hours
  • Input Voltage: 120V
  • Power Factor: 0.9
  • Flicker: <30%

Dimensions

  • Weight: 0.1 lbs

Technical Specifications

  • Product Type: Reflector
  • Bulb Shape: R20
  • Wattage: 7W
  • Wattage Equivalency: 50W Incandescent
  • Typical Lumen Output: 525
  • Efficacy: 75 lm/W
  • Color Temperature: 3000K Warm White
  • CRI: 80
  • Base Type: E26
  • L70 Lifespan: 25,000 hours
  • Operating Temperature: -20°C - 40°C
  • Dimmable: Yes, down to 10%
  • Beam Angle: 110°
  • Warranty: 3-Year, No-Compromise Warranty
  • For Use in Emergency Fixtures: No
  • For Use Outdoors in Open Fixtures: No

Electrical Characteristics

  • Input Voltage: 120V
  • Power Factor: 0.9
  • Flicker: <30%

Listings

  • UL Listed: Yes
  • Energy Star ID: 2329464
  • CEC Status: Not lawful for sale in California

Overview

UPC 01981375067
GTiN 00019813750675
Warranty Length 3 yr
Color 3000 K
Operating Temperature 40 C
Voltage 120 Volt
Type LAMPS
Weight 0.1 lb
Wattage 7 Watt
Color Temperature 3000 K
Color Accuracy 80 CRI
Lumens 525 lm
Base E26
Input Voltage 120 V
Shape R20
Family Brand Name Rab Design Lighting
Dimmable? Yes
Beam Spread 110 degrees
Average Rated Life 25,000 hr
Power Factor 0.9
Efficacy 75 LPW
Color Rendering Index 80 CRI
