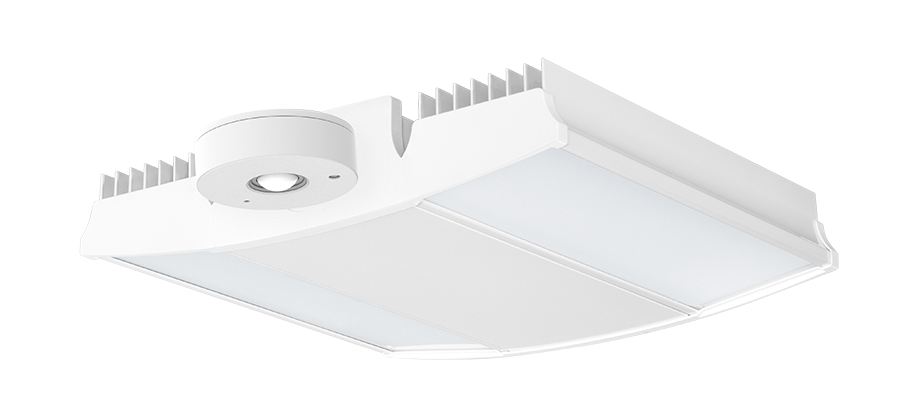

RAB RAIL95NW/D10/LCS HBAY 13IN 95W

Features

• Ideal for large spaces
• 100,000-hour lifespan - virtually maintenance free operation
• 0-10V driver for variable dimming down to 10%
• Low-glare design with semi-diffuse lens

Specifications

Performance

• Watts: 95W
• Color Temp: 4000K (Neutral)
• Lumens: 12,176
• Efficacy: 133.5 lm/W
• Color Accuracy: 77 CRI
• L70 Lifespan: 100,000 hours
• Type: Constant Current
• 120V: 0.78A
• 208V: 0.47A
• 240V: 0.41A
• 277V: 0.35A
• Input Watts: 91.20W

Dimensions

• Weight: 13.4 lbs

Lightcloud

• Installed with Lightcloud: Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.
• Lightcloud Sensor Installed: Occupancy, vacancy, and closed loop daylight harvesting in one versatile sensor. Control any fixture in your Lightcloud system. Can also be used as a load controller.

Listings

• UL Listing: Suitable for damp locations
• DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: PYGQGNH5

LED Characteristics

• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• Color Stability: LED Color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
• Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

• Maximum Ambient Temperature: Suitable for use 12 hours a day, 6 days a week in 60°C (140°F). Suitable for 24/7 use in up to 50°C (122°F).
• Housing: Extruded aluminum
• Lens: High-transmittance polystyrene
• Reflector: Specular, high-reflectance aluminum with 95% reflectivity
• Mounting: V hooks (chain by others)
• Finish: Formulated for high durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.
• Recommended Mounting Height: Up to 25 ft

Electrical

• Driver: One Driver, Class 2, Constant Current, 100-277VAC, 50-60Hz, 4kV, 1.1A,
• Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
• THD: 5.6% at 120V, 9.7% at 277V
• Power Factor: 99.8% at 120V, 93% at 277V

Other

• Replacement: Replaces 100-250W MH
• Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
• Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Sensor Specifications

• Handheld Wireless Configuration Tool: Adjust settings using handheld wireless configuration tool. Only available with 0-10V dimming driver options.
