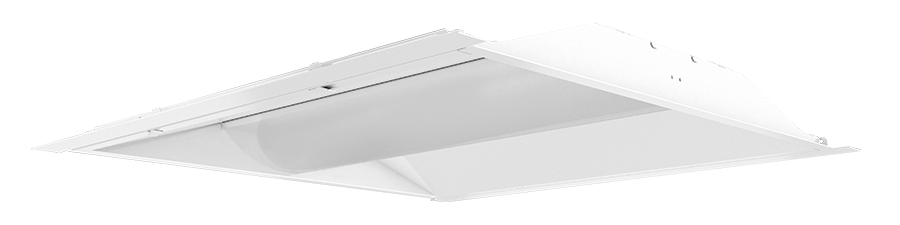

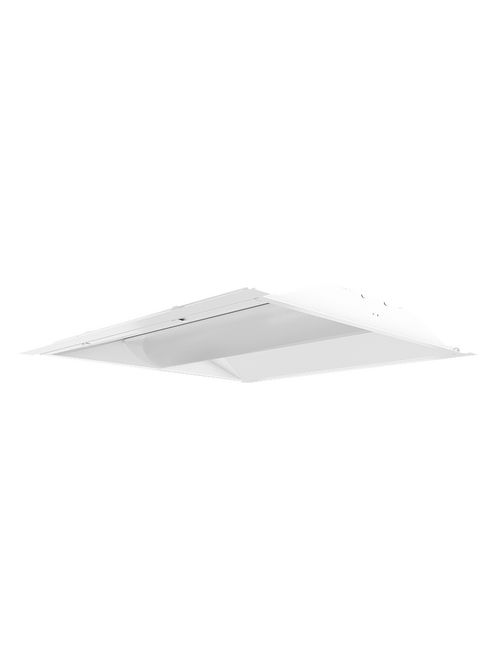

RAB RTLED2X2-29NW/D10 RETROFIT TROF

Features

• Troffer Retrofit can be installed in under 3 minutes by 1 person
• Frosted polycarbonate lens provides a uniform distribution and reduces glare
• 0-10V dimming standard
• 5-Year, No-Compromise Warranty

Specifications

Performance

• Watts: 29W
• Color Temp: 4000K (Neutral)
• Lumens: 3,801
• Efficacy: 132.9 lm/W
• Color Accuracy: 84 CRI
• L70 Lifespan: 100,000 hours
• Type: Constant Current
• 120V: 0.24A
• 208V: 0.15A
• 240V: 0.13A
• 277V: 0.11A
• Input Watts: 28.60W

Dimensions

• Weight: 12.3 lbs

Listings

• UL Listed: Suitable for damp locations
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80
• DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: P9KG2OTG

Electrical

• Driver: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.24A, 0.15A, 0.13A, 0.11A
• Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
• THD: 17.8% at 120V, 12.3% at 277V
• Power Factor: 98.3% at 120V, 93% at 277V
• Surge Protection: 4kV
• Note: All values are typical (tolerance +/- 10%)

Construction

• Housing: Steel sheet metal
• Ambient Temperature: Suitable for 40°C (104°F)
• Reflector: High-reflectance, powder-coated finish, optimized for uniform light distribution
• Mounting: Recessed ceiling
• Lens: Polycarbonate lens
• Finish: Formulated for high durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.

LED Characteristics

• LEDs: Long-life, high-efficacy surface mount LEDs
• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
• Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Other

• Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
• Equivalency: Equivalent to (3) F17T8 or (3) F14T5
• Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
