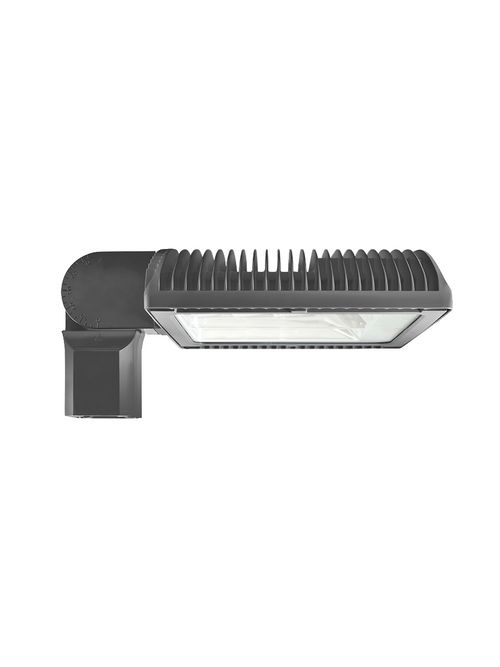

RAB RWLED2T78SF RWLED T II 78W COOL
Product image thumbnail 0
Product image thumbnail 1
$1,082.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # RWLED2T78SF
North Coast Part # 1165256

Features

  • Ideal for entrance roadways, collector roads, and single-sided roads
  • 78W High-Performance LED
  • Replaces 250W metal halide roadway fixtures
  • 27 year lifespan dramatically reduces maintenance and re-lamping costs
  • Precision optics deliver maximum downward street side lumens with uniformity and minimal glare
  • Industry-leading 5G vibration rating per ANSI C136.31
  • Easy-access electrical compartment makes wiring fast and secure
  • 10-Year, No-Compromise Warranty

Specifications

Performance

  • Watts: 78W
  • Color Temp: 5100K (Cool)
  • Lumens: 9,552
  • Efficacy: 122.6 lm/W
  • Color Accuracy: 71 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.66A
  • 208V: 0.41A
  • 240V: 0.35A
  • 277V: 0.30A
  • Input Watts: 77.90W

Dimensions

  • Weight: 32.0 lbs

Listings

  • UL Listing: Suitable for wet locations as a downlight
  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: P0000179Z
  • IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • LEDs: Six (6) multi-chip, 13W, high-output, long-life LEDs
  • Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

  • IES Classification: The Type II distribution is ideal for entrance roadways, collector roads and other long, single-sided and narrow lighting applications. This type of lighting is commonly found on smaller local streets.
  • Effective Projected Area: EPA = 2.2
  • IP Rating: Ingress Protection rating of IP66 for dust and water
  • Vibration Rating: Industry-leading 5G vibration rating per ANSI C136.31
  • Ambient Temperature: Suitable For use in 40°C (104°F)
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Thermal Management: Superior thermal management design with external Air-Flow fins provides maximum operational life, even in high ambient temperature environments
  • Lens: Tempered glass lens
  • Housing: Die cast aluminum housing, lens frame and mounting arm
  • Mounting: Slipfitter with 180° pivot available for mounting on 2 3/8" tenon
  • Recommended Mounting Height: Up to 25 ft
  • Reflector: Specular vacuum-metallized polycarbonate
  • Gaskets: High-temperature silicone gaskets
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.

Electrical

  • Driver: Constant Current, Class 2, 2000mA, 100-277V, 50-60Hz, 1.1A, Power Factor 99%
  • THD: 4.9% at 120V, 13.8% at 277V
  • Power Factor: 99.5% at 120V, 93.6% at 277V
  • Surge Protection: 6kV surge suppression protection tested in accordance with IEEE/ANSI C62.41.2.

Other

  • Patents: The LROAD™ design is protected by patents pending in the U.S., Canada, China, Taiwan and Mexico.
  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of ten (10) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Equivalency: Replaces 250W Metal Halide
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Optical

  • BUG Rating: B1 U0 G2

Overview

UPC 01981307961
GTiN 00019813079615
Finish Bronze,WHITE
Voltage 120-277 Volt
Type ROADWAY
Applications OUTDOOR
Weight 32.0 lb
Wattage 78 Watt
Color Temperature 5000 K
Color Accuracy 71 CRI
Lumens 9552 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Amperage 0.3 Amp
Average Rated Life 100,000 hr
Input Wattage 77.90 W
Power Factor 93.6% At 277V,99.5% At 120V
Efficacy 122.6 LPW
Total Harmonic Distortion 13.8% At 277V,4.9% At 120V
Color White
