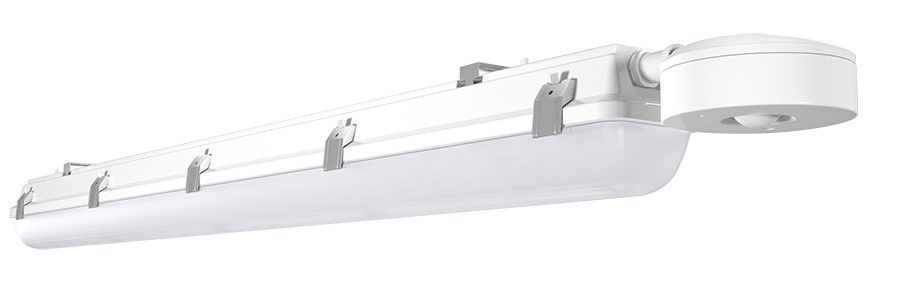

RAB SEAL4-25/D10/LCS SEAL LIN WAOWN

$403.46/ea

Usually ships within 11 to 17 Days

Adding...

Already a Customer? Log in to view your pricing

Features

Impact resistant polycarbonate housing
Diffuse polycarbonate lens for protection and minimal glare
Quick mount solutions - surface & suspended
0-10V dimming
Integrated Lightcloud® Controller
Easy Lightcloud® system setup - simply power on, confirm device connectivity and call 844-LIGHTCLOUD

Installed with Lightcloud: Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.
Lightcloud Sensor Installed: Occupancy, vacancy, and closed loop daylight harvesting in one versatile sensor. Control any fixture in your Lightcloud system. Can also be used as a load controller.

UL Listing: Suitable for damp locations
IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PEYENJEU

Driver: Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.22A, 208V: 0.13A, 240V: 0.11A, 277V: 0.096A
Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
THD: 5.16% at 120V, 9.25% at 277V

LEDs: Long-life, high-efficacy surface mount LEDs
Lifespan: 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

IP Rating: Ingress Protection rating of IP65 for dust and water (suitable for damp locations only when installed with Lightcloud Sensor)
Housing: Impact-resistant polycarbonate with stainless steel door clips. 1/2" opening/ drill out (drill out by customer) for conduit and bushing/cord entry.
Mounting: Quick-mount, stainless steel snap on brackets supplied for surface mounting. V-Hook brackets supplied standard for suspending the fixture.
Lens: Diffuse polycarbonate lens for low glare and maximum protection
Gaskets: High-temperature silicone gaskets
Cold Weather Starting: The minimum starting temperature is -20°C (-4°F)
Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
Installation: Tether Cables are provided for easy installation. Quick connector may be used for quick and easy wiring.
Green Technology: Mercury and UV free. RoHS-compliant components.
Finish: Formulated for high durability and long-lasting color

5 Yr Limited Warranty: The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at
Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
