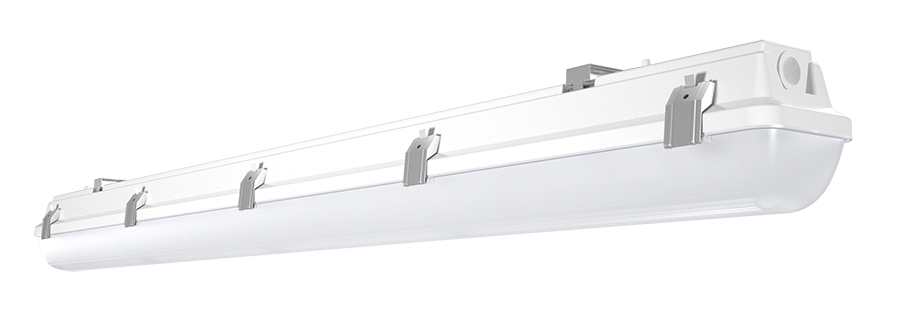

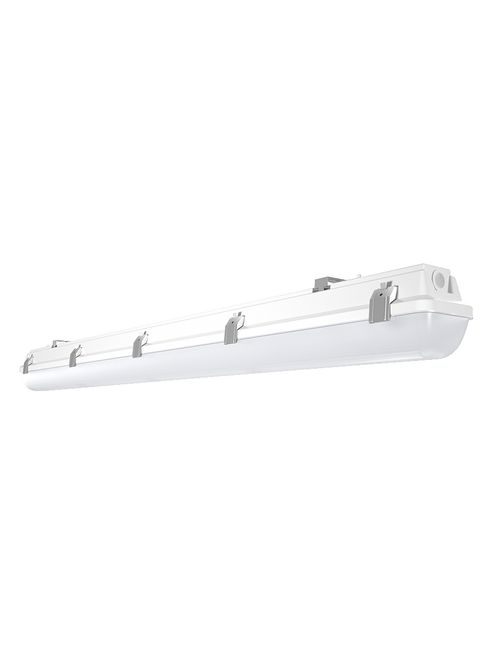

RAB SEAL4-25/D10 SEAL LIN WASHDOWN
$118.86/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # SEAL4-25/D10
North Coast Part # 1687660

Features

  • Economical linear washdown solution
  • Impact resistant polycarbonate housing
  • Diffuse polycarbonate lens for protection and minimal glare
  • Quick mount solutions - surface & suspended
  • 0-10V dimming

Specifications

Performance

  • Watts: 25W
  • Color Temp: 5000K (Cool)
  • Lumens: 3,019
  • Efficacy: 117.9 lm/W
  • Color Accuracy: 82 CRI
  • L70 Lifespan: 50,000 hours
  • Type: Constant Current
  • 120V: 0.22A
  • 208V: 0.13A
  • 240V: 0.11A
  • 277V: 0.096A
  • Input Watts: 25.60W

Dimensions

  • Weight: 6.5 lbs

Listings

  • UL Listing: Suitable for wet locations
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PEYENJEU

Electrical

  • Driver: Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.22A, 208V: 0.13A, 240V: 0.11A, 277V: 0.096A
  • Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
  • THD: 5.16% at 120V, 9.25% at 277V

LED Characteristics

  • LEDs: Long-life, high-efficacy surface mount LEDs
  • Lifespan: 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

  • IP Rating: Ingress Protection rating of IP65 for dust and water (suitable for damp locations only when installed with Lightcloud Sensor)
  • Housing: Impact-resistant polycarbonate with stainless steel door clips. 1/2" opening/ drill out (drill out by customer) for conduit and bushing/cord entry.
  • Mounting: Quick-mount, stainless steel snap on brackets supplied for surface mounting. V-Hook brackets supplied standard for suspending the fixture.
  • Lens: Diffuse polycarbonate lens for low glare and maximum protection
  • Gaskets: High-temperature silicone gaskets
  • Cold Weather Starting: The minimum starting temperature is -20°C (-4°F)
  • Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
  • Installation: Tether Cables are provided for easy installation. Quick connector may be used for quick and easy wiring.
  • Green Technology: Mercury and UV free. RoHS-compliant components.
  • Finish: Formulated for high durability and long-lasting color

Other

  • 5 Yr Limited Warranty: The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981370574
GTiN 00019813705743
Finish Bronze
Voltage 120/277 Volt
Type ENCLOSED & GASKETED
Applications INDOOR
Weight 6.5 lb
Wattage 25 Watt
Color Temperature 5000 K
Color Accuracy 82 CRI
Lumens 3,019 lm
Family Brand Name Rab Design Lighting
Amperage 0.096 Amp
Average Rated Life 50,000 hr
Input Wattage 25.60 W
Efficacy 117.9 LPW
Total Harmonic Distortion 5.16% At 120V,9.25% At 277V
