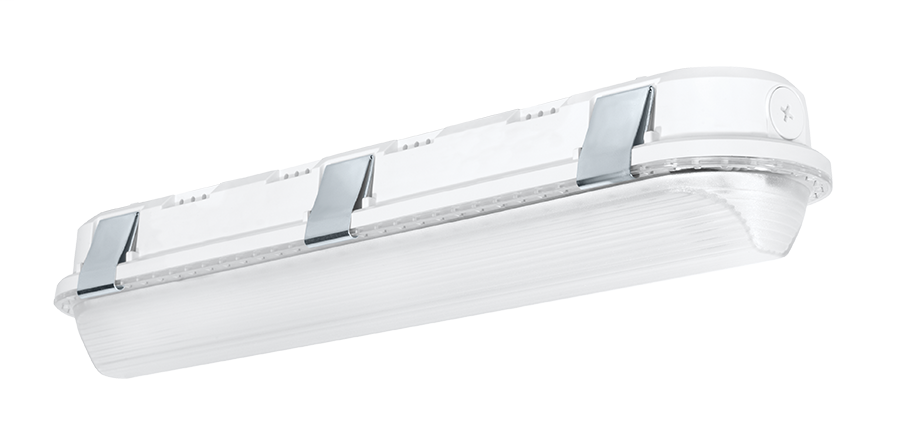

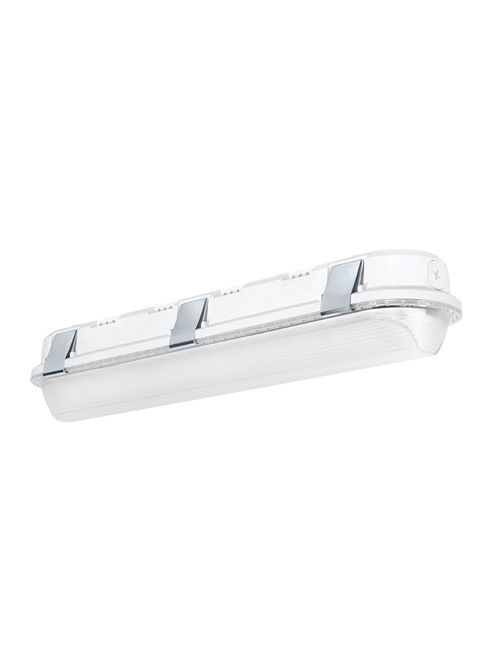

RAB SHARK2-18W/D10 LINEAR WASHDOWN
$284.87/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # SHARK2-18W/D10
North Coast Part # 1160296

Features

  • Impact-resistant linear washdown
  • Ideal for tunnels and stairwells
  • Mounting options: Chain, junction box, angled surface mount or vandal-resistant surface mount
  • IP66 Rating protects against dust & water ingress
  • 5-Year, No-Compromise Warranty
  • 100,000-Hour LED lifespan

Specifications

Performance

  • Watts: 18W
  • Color Temp: 5000K (Cool)
  • Lumens: 2,218
  • Efficacy: 116.1 lm/W
  • Color Accuracy: 74 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.16A
  • 208V: 0.09A
  • 240V: 0.08A
  • 277V: 0.07A
  • Input Watts: 19.10W

Dimensions

  • Weight: 7.5 lbs

Listings

  • UL Listing: Suitable for wet locations
  • NSF: NSF Certified by Public Health and Safety
  • NEMA Rating: 4X, protected against corrosion
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PUGHKXK3

Construction

  • IP Rating: Ingress Protection rating of IP66 for dust and water
  • Reflector/Tray: Aluminum
  • Housing: 5VA impact-resistant polycarbonate. 1/2" openings for conduit and bushing/cord entry. Polycarbonate is affected by cleaning agents or other liquids containing partial solvents such as low molecular weight aldehydes and ethers, ketones, esters, aromatic hydrocarbons and perchlorinated hydrocarbons.
  • Mounting: Quick-mount, surface, stainless steel spring clips supplied. 4 additional mounting accessory kits available.
  • Lens: Diffuse polycarbonate lens for low glare and maximum protection
  • Gaskets: EVA silicone foam
  • Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Green Technology: Mercury and UV free. RoHS-compliant components.
  • Finish: Formulated for high durability and long-lasting color

LED Characteristics

  • LEDs: Long-life, high-efficacy surface mount LEDs
  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Electrical

  • Driver: Class 2 Constant Current, 4kV, 100-277VAC, 50-60Hz
  • Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
  • THD: 7.5% at 120V, 7.6% at 277V

Other

  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981330854
GTiN 00019813308548
Finish WHITE
Voltage 120/277 Volt
Type ENCLOSED & GASKETED
Applications INDOOR
Weight 7.5 lb
Wattage 18 Watt
Color Temperature 5000 K
Color Accuracy 74 CRI
Lumens 2,218 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Amperage 0.08 Amp
Average Rated Life 100,000 hr
Input Wattage 19.10 W
Efficacy 116.1 LPW
Total Harmonic Distortion 7.5% At 120V,7.6% At 277V
Size 2 FT
Color White
