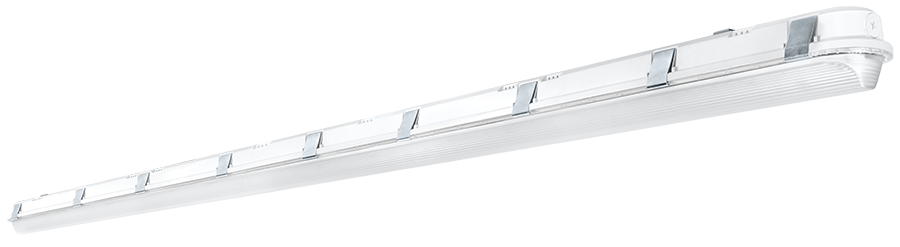

RAB SHARK8-70NW/D10/LC LIN WASHDOWN
$685.17/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # SHARK8-70NW/D10/LC
North Coast Part # 1829760

Features

  • American Bureau of Shipping (ABS) approved
  • Ideal for tunnels and stairwells
  • Mounting options:
  • Chain, junction box, angled surface mount, ceiling mount or vandal-resistant surface mount
  • IP66 AND NEMA 4X ratings protect against dust, water ingress & corrosion
  • 5-Year, No-Compromise Fixture Warranty and 10-Year, No-Compromise Lightcloud Warranty
  • 100,000-Hour LED lifespan
  • Built in support Lightcloud_
  • Easy setup - simply power on, confirm device connectivity and call 844-LIGHTCLOUD

Specifications

Performance

  • Watts: 70W
  • Color Temp: 4000K (Neutral)
  • Lumens: 10,162
  • Efficacy: 137 lm/W
  • Color Accuracy: 75 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.62A
  • 208V: 0.38A
  • 240V: 0.33A
  • 277V: 0.28A
  • Input Watts: 74.20W

Dimensions

  • Weight: 25.7 lbs

Lightcloud

  • Installed with Lightcloud: Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.
  • Lightcloud Controller Installed: Fixture, Zone, and plug-load control from one powerful device. Capable of switching, 0-10V dimming, power monitoring. Can also be used to extend the range of the Lightcloud mesh network. Attach to fixture, junction box, or electrical panel.

Listings

  • UL Listing: Suitable for wet locations
  • ABS: Approved for use on mobile offshore drilling units and shipping vessels
  • NEMA Rating: 4X, protected against corrosion
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: PNNZDUCJ

Electrical

  • Driver: Class 2 Constant Current, 4kV, 100-277VAC, 50-60Hz, 120V: 0.62A, 208V: 0.38A, 240V: 0.33A, 277V: 0.28A
  • Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
  • THD: 7.5% at 120V, 8.9% at 277V
  • Power Factor: 99.2% at 120V, 95.9% at 277V
  • Surge Protection: 4kV

Construction

  • IP Rating: Ingress Protection rating of IP66 for dust and water
  • Housing: 5VA impact-resistant polycarbonate. 1/2" openings for conduit and bushing/cord entry. Polycarbonate is affected by cleaning agents or other liquids containing partial solvents such as low molecular weight aldehydes and ethers, ketones, esters, aromatic hydrocarbons and perchlorinated hydrocarbons.
  • Mounting: Quick-mount, surface, stainless steel spring clips supplied. 4 additional mounting accessory kits available.
  • Lens: Diffuse polycarbonate lens for low glare and maximum protection
  • Gaskets: EVA silicone foam
  • Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
  • Cold Weather Starting: The minimum starting temperature is -30°C (-22°F)
  • Installation: 6ft 5-wire cord installed on fixture for easy installation on SHARK8. Tether Cables are provided for easy installation. Quick connector may be used for quick and easy wiring.
  • Green Technology: Mercury and UV free. RoHS-compliant components.
  • Finish: Formulated for high durability and long-lasting color

LED Characteristics

  • LEDs: Long-life, high-efficacy surface mount LEDs
  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Other

  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981326761
GTiN 00019813267616
Finish WHITE
Voltage 120/277 Volt
Type ENCLOSED & GASKETED
Applications INDOOR
Weight 25.7 lb
Wattage 70 Watt
Color Temperature 4000 K
Color Accuracy 75 CRI
Lumens 10,162 lm
Family Brand Name Rab Design Lighting
Amperage 0.62 Amp
Average Rated Life 100,000 hr
Input Wattage 74.20 W
Power Factor 95.9% At 277V,99.2% At 120V
Efficacy 137 LPW
Total Harmonic Distortion 8.9% At 277V,7.5% At 120V
Size 8 FT
