Manufacturer RAB Lighting
Mfg Catalog # SK12XL12RDN
North Coast Part # 1684888

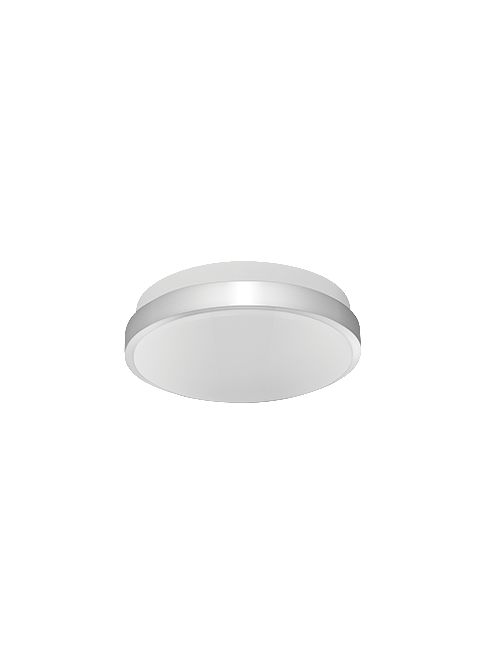

  • Surface mount to ceiling or wall
  • Opal lens provides soft, smooth light
  • Compatible with TRIAC dimming



  • Watts: 12W
  • Color Temp: 4000K (Neutral)
  • Lumens: 1,105
  • Efficacy: 90.6 lm/W
  • Color Accuracy: 82 CRI
  • L70 Lifespan: 50,000 hours
  • Type: Constant Current
  • 120V: 0.11A
  • 208V: 0
  • 240V: 0
  • 277V: 0
  • Input Watts: 12.20W


  • Weight: 3.4 lbs


  • UL Listing: Suitable for damp locations. For indoor use only.
  • ENERGY STAR V2.0: This product is ENERGY STAR® Version 2.0 Certified.
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

LED Characteristics

  • Lifespan: 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • LEDs: Long-life, high-efficacy surface mount LEDs
  • Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.


  • Driver: 120VAC TRIAC, Constant Current, Class 2, 60 Hz, 0.11A
  • Dimming Driver: Compatible with TRIAC dimming at 120V.
  • THD: 21.2% at 120V
  • Power Factor: 96.6% at 120V


  • Cold Weather Starting: The minimum starting temperature is -20°C (-4°F)
  • Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
  • Housing: Steel sheet metal
  • Mounting: Ceiling or wall mount to junction box
  • Reflector: White painted, reflective, die formed painted steel
  • Lens: Diffused Polymethyl Methacrylate (PMMA)
  • Green Technology: Mercury and UV free. RoHS-compliant components.
  • Finish: Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color


  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Equivalency: Equivalent to (2) 13W CFL or (1) 24W Circline
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.


UPC 01981349932
GTiN 00019813499321
Finish Polyester Powder Coating
Size 12 in
Voltage 120 Volt
Applications INDOOR
Mounting Type Surface
Weight 3.4 lb
Wattage 12 Watt
Color Accuracy 82 CRI
Lumens 1105 lm
Shape Round
Family Brand Name Rab Design Lighting
Amperage 0.11 Amp
Average Rated Life 50,000 hr
Input Wattage 12.20 W
Power Factor 96.6% At 120V
Efficacy 90.6 LPW
Total Harmonic Distortion 21.2% At 120V
