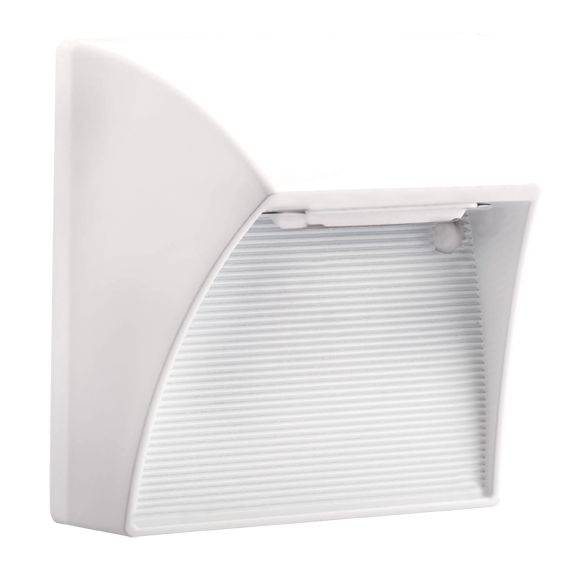

RAB SLED5W 120/208/240/277 Volt 5 W 5000 K Square White Plated LED Step Light
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # SLED5W
North Coast Part # 881113


  • 5 Watt, High output LED
  • 100,000-hour life
  • Superior heat sinking with die cast aluminum housing
  • Meets ADA Requirements
  • Junction Box Not Included



  • Watts: 5W
  • Color Temp: 5000K (Cool)
  • Lumens: 196
  • Efficacy: 37 lm/W
  • Color Accuracy: 68 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.1A
  • 208V: 0.06A
  • 240V: 0.05A
  • Input Watts: 5.30W


  • Weight: 1.4 lbs


  • UL Listing: Suitable for wet locations. Suitable for mounting within 4ft. of the ground.
  • IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Lumen Maintenance: The LED will deliver 70% of its initial lumens at 100,000 hours of operation
  • Color Temperature (Nominal CCT): 5000K


  • Driver: 4W high output long life LED. Driver Constant Current, Class 2, 50-60 Hz, 100-240 VAC 0.18 amps.
  • Voltage: 100V - 240V
  • Surge Protection: 1000 Volts


  • Finish: Formulated for high durability and long-lasting color
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
  • Green Technology: Mercury and UV free. RoHS-compliant components.
  • Housing: Precision die cast aluminum housing and mounting plate (junction box not included)
  • Gasket: High-temperature silicone


  • Patents: The design of the SLED Lights are protected by U.S. Pat. 612,975, Canada Pat. 133101, and China Pat. ZL201030129140.1.
  • Equivalency: Equivalent to 13W CFL or 60W Incandescent
  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.


UPC 01981301988
Item Long Description Steplight 5 Inch Square 5W, 5000k, LED, White
GTiN 00019813019888
Finish WHITE
Voltage 100-240 Volt
Applications OUTDOOR
Weight 1.4 lb
Wattage 5 Watt
Color Temperature 5000 K
Color Accuracy 68 CRI
Lumens 196 lm
Shape Square
Family Brand Name Rab Design Lighting
Lamp Type LED
Amperage 0.05 Amp
Average Rated Life 100,000 hr
Input Wattage 5.30 W
Efficacy 37 LPW
Color White
