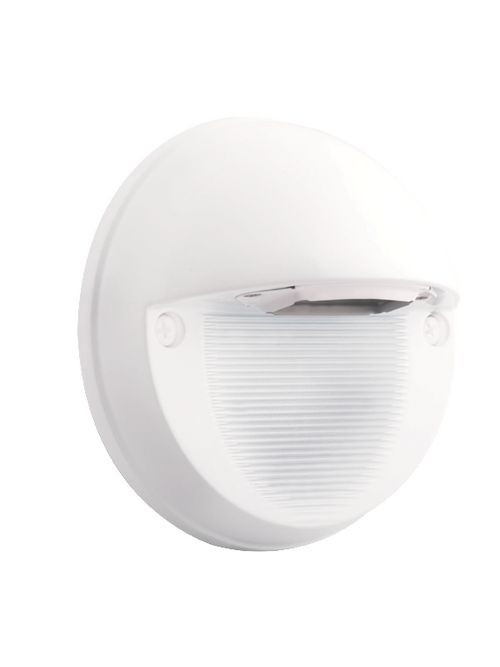

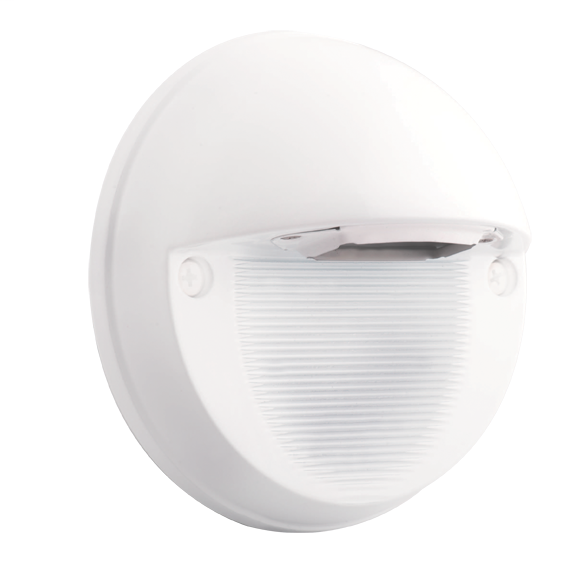

RAB SLEDR5NW STEPLIGHT 5" ROUND 5W
$206.47/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # SLEDR5NW
North Coast Part # 759563

Features

  • 5 Watt, High output LED
  • 100,000-hour life
  • Superior heat sinking with die cast aluminum housing
  • Meets ADA Requirements
  • Junction Box Not Included

Specifications

Performance

  • Watts: 5W
  • Color Temp: 4000K (Neutral)
  • Lumens: 159
  • Efficacy: 30.6 lm/W
  • Color Accuracy: 85 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.1A
  • 208V: 0.06A
  • 240V: 0.05A
  • Input Watts: 5.20W

Dimensions

  • Weight: 1.2 lbs

Listings

  • UL Listing: Suitable for wet locations. Suitable for mounting within 4ft. of the ground.
  • IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Lumen Maintenance: The LED will deliver 70% of its initial lumens at 100,000 hours of operation
  • Color Temperature (Nominal CCT): 4000K

Electrical

  • Driver: 4W high output long life LED. Driver Constant Current, Class 2, 50-60 Hz, 100-240 VAC 0.18 amps.
  • Voltage: 100V - 240V
  • Surge Protection: 1000 Volts

Construction

  • Finish: Formulated for high durability and long-lasting color
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
  • Green Technology: Mercury and UV free. RoHS-compliant components.
  • Housing: Precision die cast aluminum housing and mounting plate (junction box not included)
  • Gasket: High-temperature silicone

Other

  • Patents: The design of the SLED Lights are protected by U.S. Pat. D612,974, CA Pat. 133100, and China Pat. ZL201030129138.4.
  • Equivalency: Equivalent to 13W CFL or 60W Incandescent
  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Optical

  • BUG Rating: B0 U1 G0

Overview

UPC 01981301998
GTiN 00019813019987
Finish WHITE
Voltage 100-240 Volt
Type LANDSCAPE
Applications OUTDOOR
Weight 1.2 lb
Wattage 5 Watt
Color Temperature 4000 K
Color Accuracy 85 CRI
Lumens 159 lm
Shape Round
Family Brand Name Rab Design Lighting
Lamp Type LED
Amperage 0.1 Amp
Average Rated Life 100,000 hr
Input Wattage 5.20 W
Efficacy 30.6 LPW
Color White
