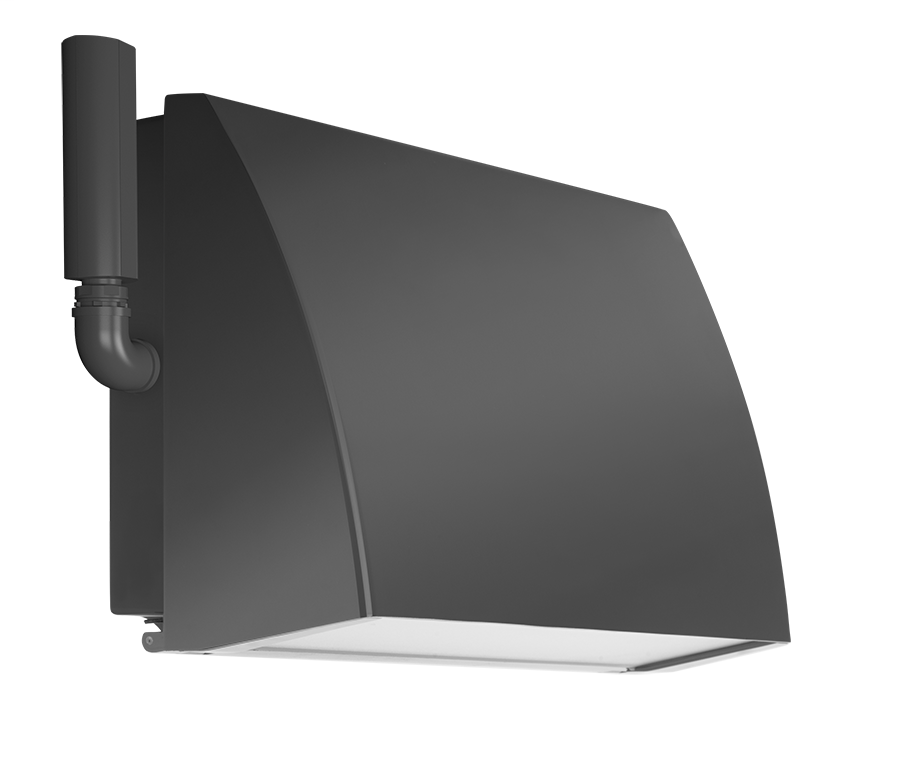

RAB SLIM57N/D10/LC SLIMWALL 57W 4KL
$893.76/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # SLIM57N/D10/LC
North Coast Part # 1826417

Features

  • Covers footprint of most traditional wall packs
  • Easy installation with hinged access, bubble level and multiple conduit entries
  • Tight-lock gasket keeps elements out
  • 100,000-hour LED lifespan
  • 5-Year, No-Compromise Warranty and 10-Year, No-Compromise Lightcloud Warranty

Specifications

Performance

  • Watts: 57W
  • Color Temp: 4000K (Neutral)
  • Lumens: 5,422
  • Efficacy: 113.7 lm/W
  • Color Accuracy: 73 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.48A
  • 208V: 0.32A
  • 240V: 0.28A
  • 277V: 0.24A
  • Input Watts: 47.70W

Dimensions

  • Weight: 13.6 lbs

Lightcloud

  • Installed with Lightcloud: Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.
  • Lightcloud Controller Installed: Fixture, Zone, and plug-load control from one powerful device. Capable of switching, 0-10V dimming, power monitoring. Can also be used to extend the range of the Lightcloud mesh network. Attach to fixture, junction box, or electrical panel.

Listings

  • UL Listing: Suitable for Wet Locations. Wall Mount Only.
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Construction

  • Footprint: Designed to replace RAB HID WP2 wall packs, both in size and footprint template, so upgrading to LED is easy and seamless
  • IP Rating: Ingress Protection rating of IP66 for dust and water
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
  • Housing: Precision die-cast aluminum housing and door frame
  • Mounting: Die-cast back box with four (4) conduit entry points and knockout pattern for junction box or direct wall mounting. Hinged housing and bubble level for easy installation.
  • Cutoff: Cutoff (10°)
  • Recommended Mounting Height: Up to 25 ft
  • Lens: Microprismatic diffusion glass lens reduces glare and has smooth and even light distribution
  • Reflector: Specular thermoplastic
  • Gaskets: The unique design of the tight-lock gasket ensures no water or environmental elements will ever get inside the SLIM
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.

LED Characteristics

  • LED: Long-life, high-efficiency, micro-power, surface mount LEDs; binned and mixed for uniform light output and color
  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Electrical

  • Driver: Two Drivers, Constant Current, Class 2, 100-277V, 50/60Hz, 720mA, 100-277VAC 0.8A, 6kV Surge Protection,Power Factor 99.1%.
  • Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.

Other

  • Accessories: Available accessories include polyshield and wire guard. Click to see all accessories.
  • Patents: The design of the SLIM™ is protected by patents pending in US, Canada, China, Taiwan and Mexico
  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • HID Replacement Range: Replaces 250W Metal Halide
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981370277
GTiN 00019813702773
Finish Bronze
Voltage 120/277 Volt
Type WALLPACK
Applications OUTDOOR
Weight 13.6 lb
Wattage 57 Watt
Color Temperature 4000 K
Color Accuracy 73 CRI
Lumens 5422 lm
Family Brand Name Rab Design Lighting
Amperage 0.24 Amp
Average Rated Life 100,000 hr
Input Wattage 47.70 W
Efficacy 113.7 LPW
