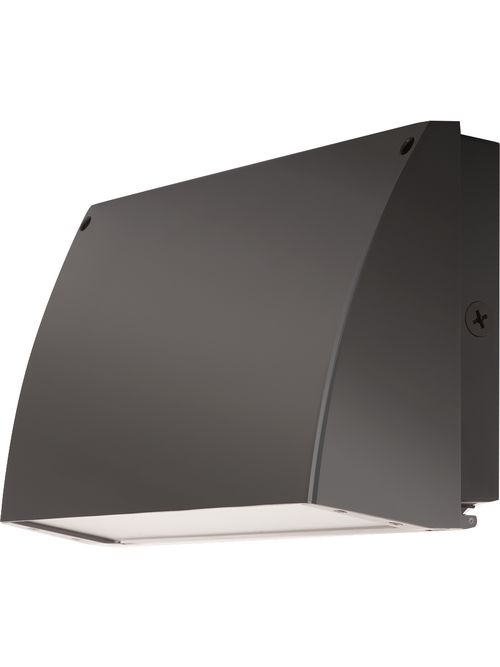

RAB SLIM57N/PC SLIMWALL 57W NEUT 12

Features

• Covers footprint of most traditional wall packs
• Easy installation with hinged access, bubble level and multiple conduit entries
• Tight-lock gasket keeps elements out
• 100,000-hour LED lifespan
• 5-Year, No-Compromise Warranty

Specifications

Performance

• Watts: 57W
• Color Temp: 4000K (Neutral)
• Lumens: 5,422
• Efficacy: 113.7 lm/W
• Color Accuracy: 73 CRI
• L70 Lifespan: 100,000 hours
• Type: Constant Current
• 120V: 0.48A
• Input Watts: 47.70W

Dimensions

• Weight: 10.5 lbs

Electrical

• Driver: Two Drivers, Constant Current, Class 2, 100-277V, 50/60Hz, 720mA, 100-277VAC 0.8A, 6kV Surge Protection,Power Factor 99.1%.
• THD: 8.1% at 120V, 13.2% at 277V
• Photocell: 120V Button Photocell Included. Photocell is only compatible with 120V.

Listings

• UL Listing: Suitable for Wet Locations. Wall Mount Only.
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
• DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: P00001723

Construction

• Footprint: Designed to replace RAB HID WP2 wall packs, both in size and footprint template, so upgrading to LED is easy and seamless
• IP Rating: Ingress Protection rating of IP66 for dust and water
• Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
• Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
• Housing: Precision die-cast aluminum housing and door frame
• Mounting: Die-cast back box with four (4) conduit entry points and knockout pattern for junction box or direct wall mounting. Hinged housing and bubble level for easy installation.
• Cutoff: Cutoff (10°)
• Recommended Mounting Height: Up to 25 ft
• Lens: Microprismatic diffusion glass lens reduces glare and has smooth and even light distribution
• Reflector: Specular thermoplastic
• Gaskets: The unique design of the tight-lock gasket ensures no water or environmental elements will ever get inside the SLIM
• Finish: Formulated for high durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.

LED Characteristics

• LED: Long-life, high-efficiency, micro-power, surface mount LEDs; binned and mixed for uniform light output and color
• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
• Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Other

• Accessories: Available accessories include polyshield and wire guard. Click to see all accessories.
• Patents: The design of the SLIM™ is protected by patents pending in US, Canada, China, Taiwan and Mexico
• HID Replacement Range: Replaces 250W Metal Halide
• Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
• Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Optical

• BUG Rating: B1 U1 G1
