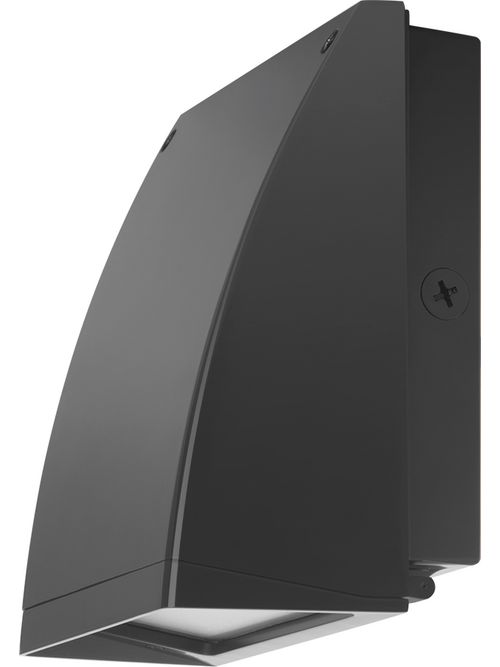

RAB SLIMFC37N/PC2 SLIMWALLPK 37W FU

$572.36/ea

Usually ships within 11 to 17 Days

Adding...

Already a Customer? Log in to view your pricing

Features

Driver: Constant Current, 100-277V. 50/60Hz, 100-277VAC 0.6A, 4kV Surge Protection, 700mA, Power Factor 99.4%.
THD: 8.1% at 120V, 13.2% at 277V
Photocell: 277V Button Photocell Included. Photocell is compatible with 208V-277V.

UL Listing: Suitable for Wet Locations. Wall Mount Only.
IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Footprint: Designed to replace RAB HID WP1 wall packs, both in size and footprint template, so upgrading to LED is easy and seamless
IP Rating: Ingress Protection rating of IP66 for dust and water
Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
Housing: Precision die-cast aluminum housing and door frame
Mounting: Die-cast back box with four (4) conduit entry points and knockout pattern for junction box or direct wall mounting. Hinged housing and bubble level for easy installation.
Full Cutoff: Full-cutoff meets dark-sky requirements
Recommended Mounting Height: Up to 20 ft
Lens: Microprismatic diffusion glass lens reduces glare and has smooth and even light distribution
Reflector: Specular thermoplastic
Gaskets: The unique design of the tight-lock gasket ensures no water or environmental elements will ever get inside the SLIM
Finish: Formulated for high durability and long-lasting color
Green Technology: Mercury and UV free. RoHS-compliant components.

LED: Long-life, high-efficiency, micro-power, surface mount LEDs; binned and mixed for uniform light output and color
Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Accessories: Available accessories include polyshield and wire guard. Click to see all accessories.
Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
HID Replacement Range: Replaces 200W Metal Halide
Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

UPC	01981310579
GTiN	00019813105796
Type	WALLPACK
Mounting Type	Up To 20 Ft.
Weight	7.5 lb
Wattage	37 Watt
Color Temperature	4000 K
Color Accuracy	73 CRI
Lumens	3536 lm
Family Brand Name	Rab Design Lighting
Fixture Type	Slim Medium And Large Wallpacks
Amperage	0.14 Amp
Average Rated Life	100,000 hr
Input Wattage	34.60 W
Efficacy	102.2 LPW
Total Harmonic Distortion	13.2% At 277V,8.1% At 120V
