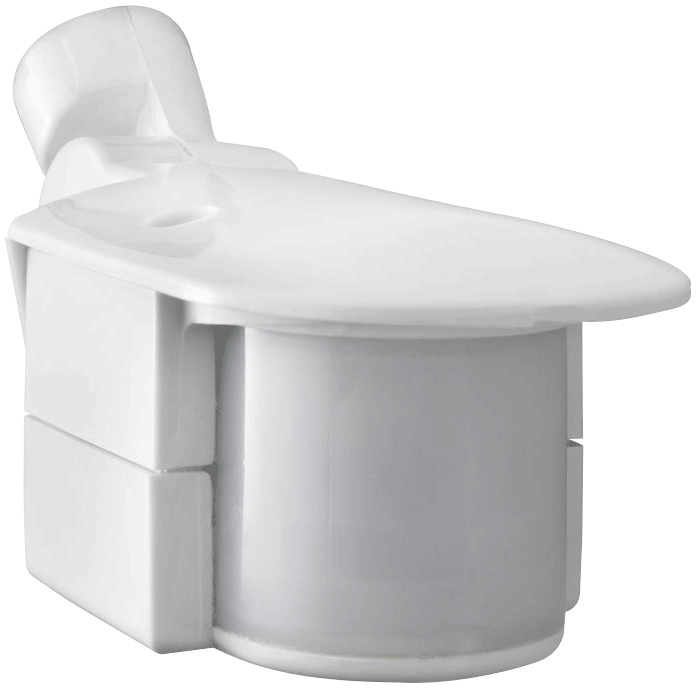

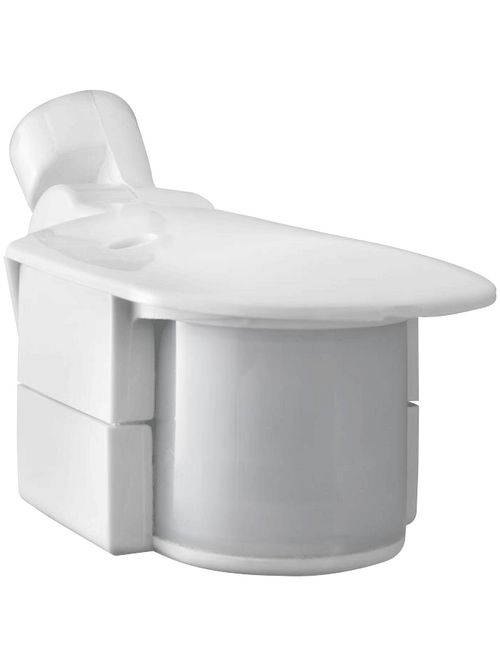

RAB SMS500W 120 Volt 180 Degrees 4 x 1 Inch White Outdoor Lighting Sensor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # SMS500W
North Coast Part # 214779


  • Surge protected
  • 180┬░detection pattern
  • Quick installation with 5 second test time and auto test logic
  • LED "on guard" indicator
  • Protected manual override with auto reset after 8 hours or at dawn



  • Weight: 0.4 lbs


  • UL Listing: Suitable for wet locations


  • Compatibility: Compatible with most electronic ballasts. Not compatible with instant start ballasts.


  • Voltage: 120 volts AC 60 Hz
  • Manual Override: Double flip wall switch logic prevents activation by brief power outages. Resets after 6 hours. No extra wiring needed.
  • Surge Protection: Withstands up to 3000 volts
  • RF Immunity: Circuits fully shielded for maximum radio frequency immunity
  • Incandescent Watts Switched: 500 watts @ 120 volts
  • Fluorescent Watts Switched: 250 watts @ 120 volts
  • Ratings: 5 amps
  • Power Consumption: Negligible
  • Manual Switch: None
  • Switching Capacity: Relay On/Off Model Switches 240 watts when lights are mounted to sensor. 500 watts Incandescent or 240 watts Fluorescent of remotely mounted lighting @ 120 volts.

Sensor Characteristics

  • Time Adjustment: 5 seconds to 15 minutes
  • Quick Test Time: 5 second test time for fast installation. Works day or night.
  • No Hands" Auto Testing: Auto mode starts after 4 minutes of testing. No adjustment needed.
  • Photoelectric Control: Deactivates lights during daylight. Fully adjustable for 24 hour operation or custom applications.
  • Time Delay: 5 seconds to 15 minutes
  • Ambient Light Sensing: Adjustable
  • Adjustments: Time, ambient light & sensitivity
  • Detection: 180┬░ detection pattern

LED Characteristics

  • LED Detection Indicator: LED glows red day & night for "on guard" deterrence


  • Warranty: 5-year sensor warranty
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.


UPC 01981376051
Item Long Description Mini 180 Sensor 500W,120V, White
GTiN 00019813760513
Finish WHITE
Warranty Length 5 yr
Color White
Voltage 120 Volt
Applications OUTDOOR
Weight 0.4 lb
Family Brand Name Rab Design Lighting
Wattage 500 Watt
