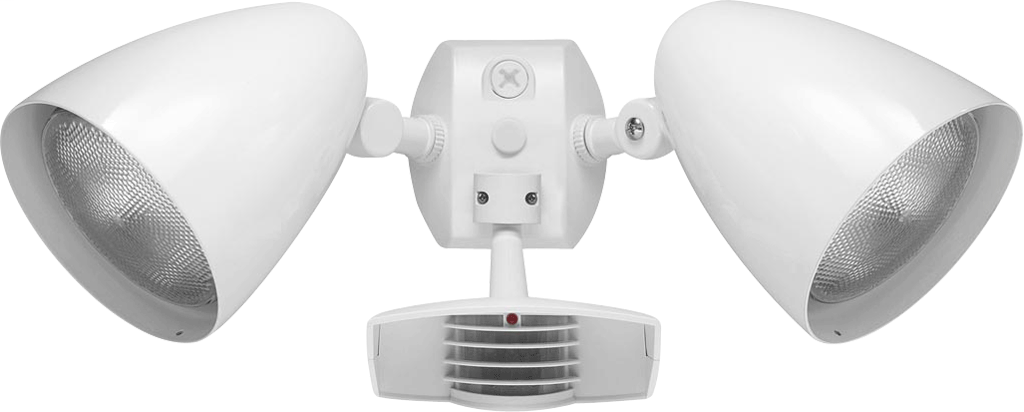

RAB STL110HBW STEALTH 110 SENR SAD
$182.82/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # STL110HBW
North Coast Part # 152492

Features

  • Temperature compensation
  • Radio frequency immunity
  • 6000 volt surge protection
  • Quick test time
  • LED detection & "on guard" indicator
  • Color matched vandal resistant lens and grill
  • Protected manual override with auto reset
  • Can be wired in parallel

Specifications

Dimensions

  • Weight: 10.0 lbs

Listings

  • UL Listing: Suitable for wet locations

Electrical

  • Power Consumption: 1W
  • Surge Protection: Withstands up to 6000 volts
  • Wall Switch Manual Override: Two flip logic prevents activation by momentary power outages. Override resets to auto at dawn. No extra wiring needed.
  • RF Immunity: Circuits fully shielded for maximum radio frequency immunity
  • Voltage: 120 Volts AC 60 Hertz
  • Switching Capacity: 1000 watts incandescent @ 120 volts, 8 amps

Sensor Characteristics

  • Time Adjustment: 5 seconds to 12 minutes
  • Wide Sensitivity Control: Adjustable from 100% to 30%
  • Advanced Detection Logic: Minimizes false triggers
  • Photoelectric Control: Deactivates lights during daylight. Fully adjustable for 24 hour operation or custom applications.
  • Detection: 110° view

Construction

  • Temperature Compensation: Sensitivity adjusts automatically for consistent detection in hot and cold ambient temperatures
  • Horizontal Lock, No-tool Joints: Keeps sensing pattern level for fast, error-free installation
  • Floodlights: Precision die cast aluminum. 1/2" NPS threaded arm with serrated locking swivel fits all standard mounting boxes and covers.

LED Characteristics

  • LED Detection Indicator: Shows when sensor is detecting in daytime and glows red at night for "on-guard" deterrence
  • Color Matched Lens: Dark lens with bronze units, white lens with white units

Other

  • Warranty: 10 year sensor warranty
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Categories

Overview

UPC 01981376061
GTiN 00019813760612
Finish WHITE
Warranty Length 10 yr
Voltage 120 Volt
Type SENSOR
Applications OUTDOOR
Weight 10.0 lb
Family Brand Name Rab Design Lighting
Wattage 1000 Watt
