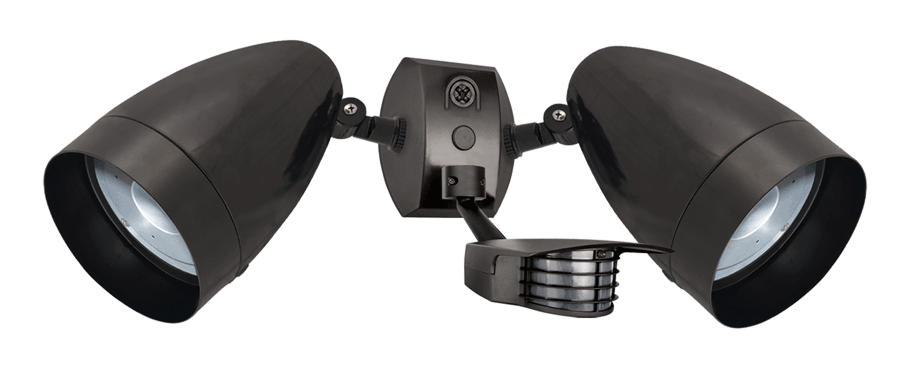

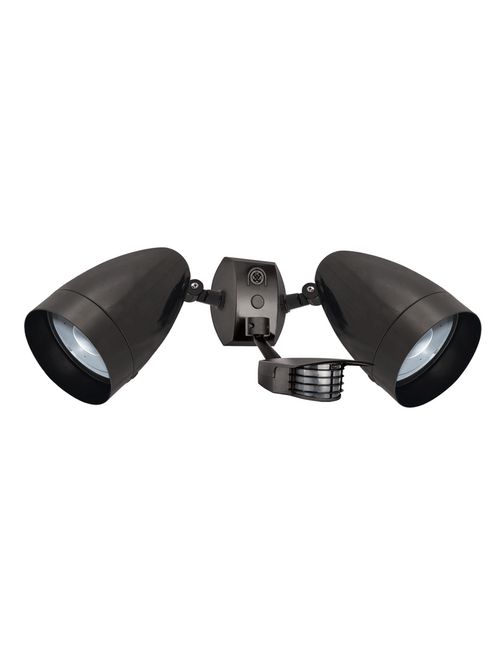

RAB STL2HBLED2X13W STL200 SENR W/ 2

Features

• Radio frequency immunity
• 6000 volt surge protection
• 1000 Watt switching capacity
• Pre-wired and pre-assembled on CU4 universal EZ plate
• Protected manual override with auto reset
• Can be wired in parallel

Specifications

Performance

• Watts: 26W
• Color Temp: 5000K (Cool)
• Lumens: 2,980
• Efficacy: 104.9 lm/W
• Color Accuracy: CRI
• L70 Lifespan: 100,000 hours
• Type: Constant Current
• 120V: 0.6A
• Input Watts: 28.40W

Dimensions

• Weight: 10.4 lbs

Listings

• UL Listing: Suitable for wet locations. Suitable for mounting within 1.2m (4ft) of the ground.
• IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

LED Characteristics

• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
• Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

• Swivels: Fully adjustable with sure-grip locks. 1/2" NPS threaded arm with serrated locking swivel fits all standard mounting covers. Color matched EZ Grip lock nuts. Stainless steel screw.
• Housing: Precision die cast aluminum housing
• Gaskets: High-temperature Silicone
• Finish: Formulated for high durability and long-lasting color
• Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
• LFLOOD 13W: LED Floodlight that reduces energy consumption by 85% compared to 100W PAR38. Spot and Flood beam patterns. Recommended for Residential and Commercial applications.

Other

• Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of ten (10) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
• Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Optical

• Reflectors: NEMA 5x5 floodlight reflector. Photometrics show flood configuration.

Sensor Characteristics

• Sensor Time Adjustment: 5 seconds to 12 minutes
• Sensor Surge Protection: Withstands up to 6000 volts
• Sensor Wide Sensitivity Control: Adjustable from 100% to 30%
• Sensor Temperature Compensation: Sensitivity adjusts automatically for consistent detection in hot and cold ambient temperatures
• Sensor Wall Switch Manual Override: Two flip logic prevents activation by momentary power outages. Override resets to auto at dawn. No extra wiring needed.
• Photoelectric Control: Deactivates lights during daylight. Fully adjustable for 24 hour operation or custom applications.
• Sensor Warranty: 10 year sensor warranty

Electrical

• Drivers(2): Multi-chip 13W high output long life LED Driver Constant Current, 100V - 277V, 50/60 Hz
