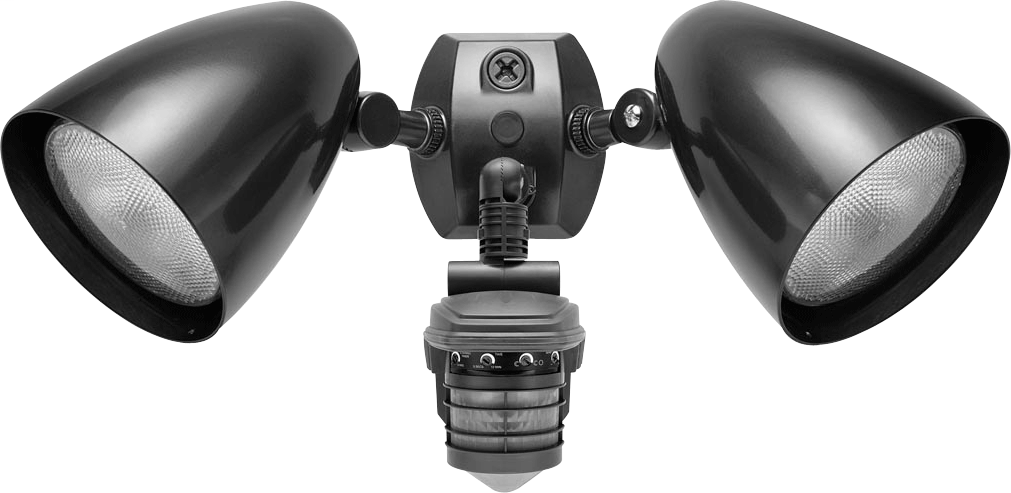

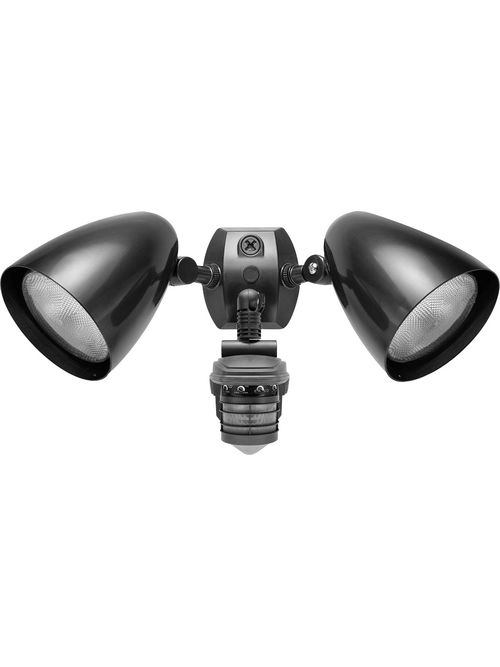

RAB STL360HB 120 Volt 1000 W 360 Degrees 5-5/8 x 7 Inch Bronze Outdoor Lighting Sensor with Bullet Flood Kit
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # STL360HB
North Coast Part # 427350


  • Senses 180° out + 360° down for total detection
  • Radio frequency immunity
  • 6000 volt surge protection
  • 1000 Watt switching capacity
  • Pre-wired and pre-assembled on CU4 universal EZ plate
  • Protected manual override with auto reset
  • Can be wired in parallel



  • Weight: 4.9 lbs


  • UL Listing: Suitable for wet locations


  • Voltage: 120 volts AC 60 Hz
  • Power Consumption: 1W
  • Surge Protection: Withstands up to 6000 volts
  • Wall Switch Manual Override: Two flip logic prevents activation by momentary power outages. Override resets to auto at dawn. No extra wiring needed.
  • RF Immunity: Circuits fully shielded for maximum radio frequency immunity
  • Switching Capacity: 8 amps, 1000 watts incandescent @ 120 volts

Sensor Characteristics

  • Time Adjustment: 5 seconds to 12 minutes
  • Wide Sensitivity Control: Adjustable from 100% to 30%
  • Evening Timer: Keeps lights on for 1-8 hours after dusk. Then sensor is motion activated until dawn.
  • Set it and forget it: STL360's full coverage pattern reduces need for aiming and adjustment
  • Advanced Detection Logic: Minimizes false triggers
  • Photoelectric Control: Deactivates lights during daylight. Fully adjustable for 24 hour operation or custom applications.
  • Detection: Senses 180° and 360° down for Total Detection

LED Characteristics

  • Scanning LEDs: 3 LEDs continually scan back-and-forth
  • Color Matched Lens: Dark lens with bronze units, white lens with white units


  • Temperature Compensation: Sensitivity adjusted automatically for consistent detection in hot and cold ambient temperatures
  • Mounting: CU4 plate allows the sensor to be mounted under a soffit
  • Lens Masks: Customized press apply lens mask included to reduce coverage easily


  • Warranty: 10 year sensor warranty
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.


UPC 01981376124
Item Long Description Super Stealth 360 Sensor with Hba Flood,s 1000W,120V with Cu4, Bronze
GTiN 00019813761244
Finish Bronze
Warranty Length 10 yr
Voltage 120 Volt
Applications OUTDOOR
Weight 4.9 lb
Family Brand Name Rab Design Lighting
Color Bronze
Wattage 1000 Watt
