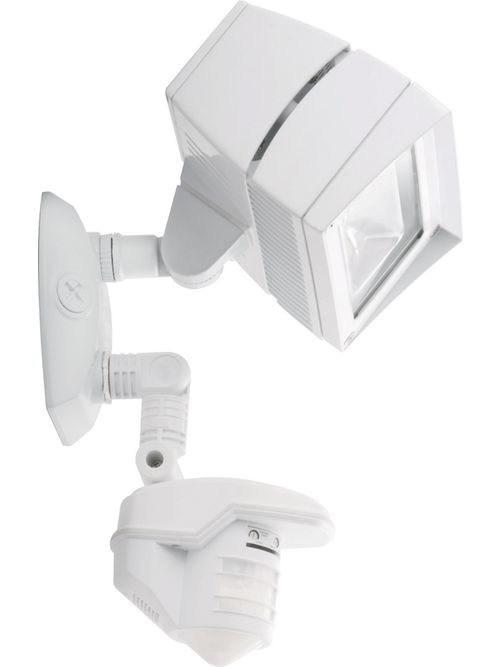

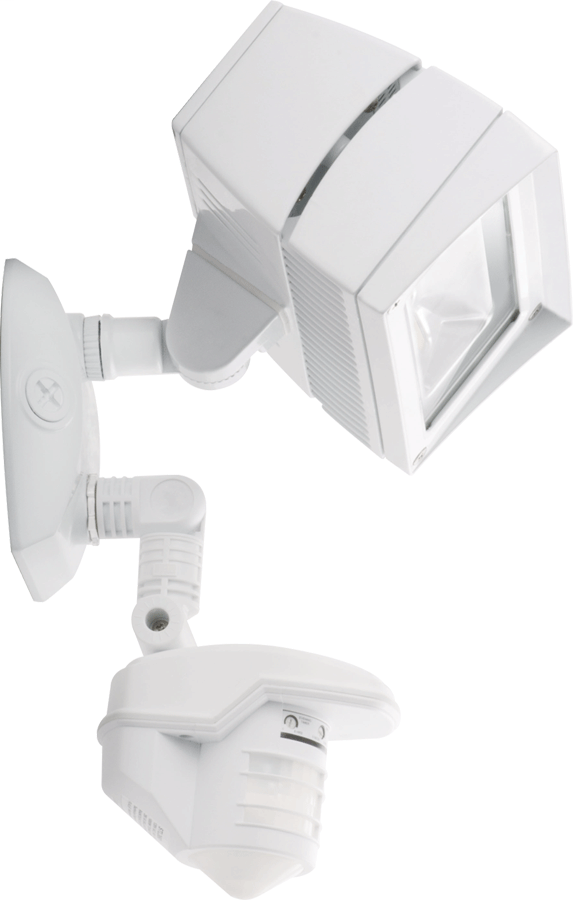

RAB STL3FFLED18W 18 W 120 Volt 8-5/8 x 9 x 12-1/4 Inch Cool White Die-Cast Aluminum LED Floodlight Fixture
$441.68/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # STL3FFLED18W
North Coast Part # 931462

Features

  • Ultra-efficient LED and optical design
  • 10-Year, No-Compromise Warranty
  • Senses 180° out + 360° down for total detection
  • Radio frequency immunity
  • 6000 volt surge protection
  • Temperature compensation

Specifications

Performance

  • Watts: 18W
  • Color Temp: 5000K (Cool)
  • Lumens: 1,681
  • Efficacy: 76.1 lm/W
  • Color Accuracy: 69 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.2A
  • Input Watts: 22.10W

Dimensions

  • Weight: 9.3 lbs

Listings

  • UL Listing: Suitable for wet locations
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • LEDs: 18 Watt high performance LEDs
  • Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
  • Scanning LEDs: 3 LEDs continually scan back-and-forth
  • Color Matched Lens: Dark lens with bronze units, white lens with white units

Optical

  • NEMA Type: 7H x 6V Beam Spread

Construction

  • Airflow: Airflow technology heat sink for superior cooling
  • Ambient Temperature: Suitable For use in 40°C (104°F)
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Mounting: Heavy-duty mounting arm with "O" ring seal & stainless steel screw. CU4 plate allows the sensor to be mounted under a soffit.
  • Reflector: Semi-specular anodized aluminum
  • Gaskets: High-temperature silicone gaskets
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.
  • Temperature Compensation: Sensitivity adjusted automatically for consistent detection in hot and cold ambient temperatures

Electrical

  • Driver: Constant Current, Class 2, 100 - 277V, 50 - 60 Hz, 100 - 277VAC 0.4 Amps.
  • THD: 8.5% at 120V, 7.2% at 277V
  • Surge Protection: 6kV
  • Voltage: 120 volts AC 60 Hz
  • Power Consumption: 1W
  • Wall Switch Manual Override: Two flip logic prevents activation by momentary power outages. Override resets to auto at dawn. No extra wiring needed.

Sensor Characteristics

  • Time Adjustment: 5 seconds to 12 minutes
  • Wide Sensitivity Control: Adjustable from 100% to 30%
  • Evening Timer: Keeps lights on for 1-8 hours after dusk. Then sensor is motion activated until dawn.
  • Set it and forget it: STL360's full coverage pattern reduces need for aiming and adjustment
  • Advanced Detection Logic: Minimizes false triggers
  • Sensor Lens Masks: Customized press apply lens mask included to reduce coverage easily
  • Sensor RF Immunity: Circuits fully shielded for maximum radio frequency immunity
  • Photoelectric Control: Deactivates lights during daylight. Fully adjustable for 24 hour operation or custom applications.
  • Sensor Detection: Senses 180° out and 360° down for Total Detection
  • Sensor Switching Capacity: 8 Amps, 750 Watts LED @120 Volts 0.8pF Driver; 8 Amps, 500 Watts LED @120 Volts 0.5pF Driver .

Other

  • Patents: The FFLED18 design is protected by patents pending in the U.S., Canada, China, Taiwan and Mexico. RAB sensor designs are protected under U.S. and International Intellectual Property laws.
  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of ten (10) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981303361
GTiN 00019813033617
Voltage 120 Volt
Type SENSOR
Weight 9.3 lb
Wattage 18 Watt
Color Temperature 5000 K
Color Accuracy 69 CRI
Lumens 1,681 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Amperage 0.2 Amp
Average Rated Life 100,000 hr
Input Wattage 22.10 W
Efficacy 76.1 LPW
Total Harmonic Distortion 7.2% At 277V,8.5% At 120V
