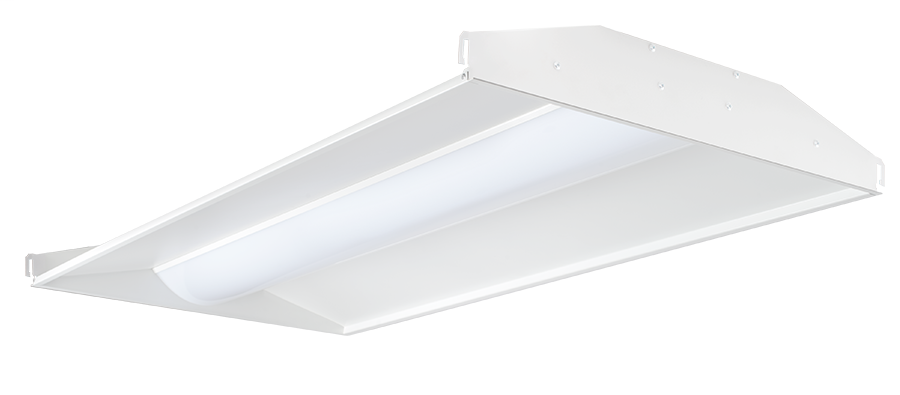

RAB SWISH2X4-39Y/D10 TROFFER CNTR B

Features

• Ultra-efficient performance with DLC Premium listing
• Optional surface mount and drywall frame kits available
• Optional programmable occupancy sensor for multi-level lighting control
• 0-10V dimming standard on all models
• 100,000-hour LED lifespan5-Year, No-Compromise Warranty

Specifications

Performance

• Watts: 39W
• Color Temp: 3000K (Warm)
• Lumens: 4,944
• Efficacy: 127.1 lm/W
• Color Accuracy: 83 CRI
• L70 Lifespan: 100,000 hours
• Type: Constant Current
• 120V: 0.33A
• 208V: 0.20A
• 240V: 0.17A
• 277V: 0.15A
• Input Watts: 38.90W

Dimensions

• Weight: 23.1 lbs

Listings

• UL Listing: Suitable for damp locations
• IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
• DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: PTGKYW4P

Electrical

• Driver: Class 2, Constant Current, 100-277V, 50/60Hz, 120V: 0.33A, 208V: 0.20A, 240V: 0.17A, 277V: 0.15A, THD <15%, Power Factor >90%, 4kV surge protection
• Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
• THD: 4.0% at 120V, 7.6% at 277V
• Power Factor: 99.8% at 120V, 95.1% at 277V

Construction

• Ambient Temperature: Suitable for 40°C (104°F)
• IC Rating: Suitable for direct contact with insulation
• Housing: Die-formed, 20-gauge, cold-rolled steel
• Mounting: Integral T-grid clips make installation easy and secure
• Reflector: High-reflectance, powder-coated finish, optimized for uniform light distribution
• Lens: Snap-in, frosted polycarbonate lens
• Finish: Formulated for high durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.

LED Characteristics

• LEDs: Long-life, high-efficacy surface mount LEDs
• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
• Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Other

• Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
• Patents: This design is protected by patents pending in US, Canada, China, Taiwan and Mexico
• Replacement: Replaces (2) F32 T8 or (2) F28 T5
• Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
