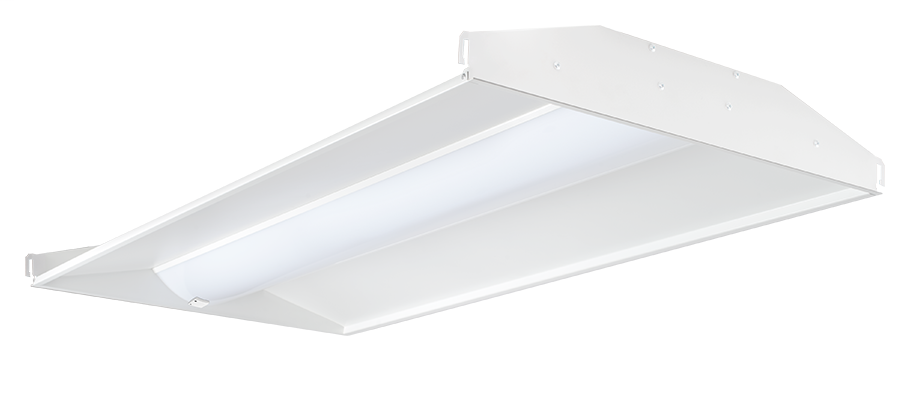

RAB SWISH2X4-49Y/D10/MVS TROFFER CE
$322.52/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # SWISH2X4-49Y/D10/MVS
North Coast Part # 1831286

Features

  • Ultra-efficient performance with DLC Premium listing
  • Optional surface mount and drywall frame kits available
  • Optional programmable occupancy sensor for multi-level lighting control
  • 0-10V dimming standard on all models
  • 100,000-hour LED lifespan5-Year, No-Compromise Warranty

Specifications

Performance

  • Watts: 49W
  • Color Temp: 3000K (Warm)
  • Lumens: 6,200
  • Efficacy: 127.8 lm/W
  • Color Accuracy: 83 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.41A
  • 208V: 0.24A
  • 240V: 0.21A
  • 277V: 0.18A
  • Input Watts: 48.50W

Dimensions

  • Weight: 23.1 lbs

Listings

  • UL Listing: Suitable for damp locations
  • IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: PVTWYF7M

Electrical

  • Driver: Class 2, Constant Current, 100-277V, 50/60Hz, 120V: 0.41A, 208V: 0.24A, 240V: 0.21A, 277V: 0.18A, THD <15%, Power Factor >90%, 4kV surge protection.
  • Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
  • THD: 3.9% at 120V, 7.8% at 277V
  • Power Factor: 99.8% at 120V, 96.3% at 277V
  • Smart Sensing: Programmable occupancy sensor for multi-level lighting control. Includes manual override from a light switch.

Construction

  • Ambient Temperature: Suitable for 40°C (104°F)
  • IC Rating: Suitable for direct contact with insulation
  • Housing: Die-formed, 20-gauge, cold-rolled steel
  • Mounting: Integral T-grid clips make installation easy and secure
  • Reflector: High-reflectance, powder-coated finish, optimized for uniform light distribution
  • Lens: Snap-in, frosted polycarbonate lens
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.

LED Characteristics

  • LEDs: Long-life, high-efficacy surface mount LEDs
  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Sensor Specifications

  • Capacitance Load: 400VA at 120VAC, 800VA at 230VAC, 1000VA at 277VAC
  • Operating Temperature: -20°C to +60°C (-4°F to +140°F)
  • Relay: Zero-cross relay
  • Maximum Mounting Height: 16.4 feet
  • Customizable Detection Area: 10, 50, 75 or 100%
  • Time Delay: 5s, 30s, 1min, 5min, 10min, 20min, 30min
  • Cut Off Period: 0s, 10s, 1min, 5min, 10min, 30min, 1hr, Bi-Level
  • Cut-Off Dimming level: 10, 20, 30, 50%
  • Cut-Off Power: Less than 1W
  • Daylight Threshold: About .2-5 fc for disabled
  • Sensor Principle: High Frequency
  • Microwave Frequency: 5.8GHz +/- 75MHz
  • Microwave Power: <0.2mW
  • Max Detection Range: 26 ft. diameter at 16 ft. mounting height
  • Detection Angle: About 30 to 150 degrees
  • Remote Control: Adjust settings using remote control (catalog# MVSREM). Only available with 0-10V dimming driver options.

Other

  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Patents: This design is protected by patents pending in US, Canada, China, Taiwan and Mexico
  • Replacement: Replaces (3) F32 T8 or (3) F28 T5
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Categories

Overview

UPC 01981349062
GTiN 00019813490625
Finish WHITE
Operating Temperature -20 To 60 C
Voltage 120/277 Volt
Type TROFFER
Applications INDOOR
Weight 23.1 lb
Wattage 49 Watt
Color Temperature 3000 K
Color Accuracy 83 CRI
Lumens 6,200 lm
Family Brand Name Rab Design Lighting
Lens Material Frosted Polycarbonate
Amperage 0.18 Amp
Average Rated Life 100,000 hr
Input Wattage 48.50 W
Power Factor 96.3% At 277V,99.8% At 120V
Efficacy 127.8 LPW
Total Harmonic Distortion 3.9% At 120V,7.8% At 277V
Color White
