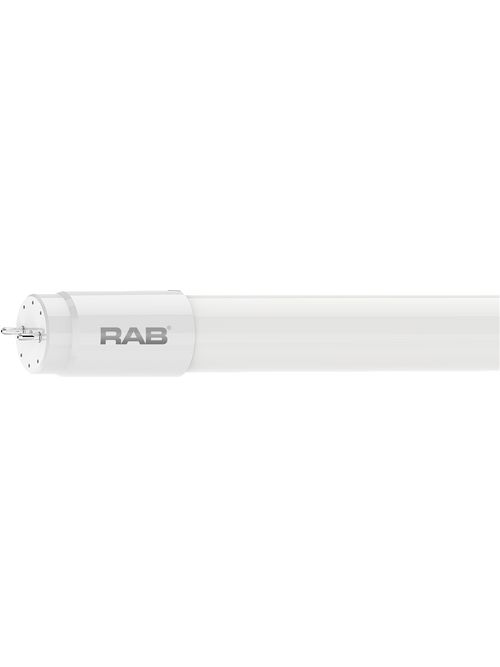

RAB T8-15-48G-840-DIR LED T8 4ft 15
$15.50/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # T8-15-48G-840-DIR
North Coast Part # 1679544

Features

  • FLUORESCENT REPLACEMENT - Replace conventional fluorescent T8 linear tubes
  • EASY TO INSTALL - Simply plug and play No rewiring, no tools, no instructions
  • 50,000-HOUR LIFESPAN - Lasts 1.6x longer than conventional fluorescent tubes
  • ENCLOSED FIXTURE RATED - May be used in enclosed and open fixtures
  • DIFFUSION COATING - Will maintain the same light quality over time and won't yellow, shrink, or wrinkle
  • BALLAST COMPATIBLE - Please check Compatibility List
  • SAVE ENERGY AND MONEY - Approximately 40% more efficient than conventional T8 lamps
  • INSTANT ON - No warmup time required, full brightness instantly
  • MERCURY FREE - Environmentally friendly vs fluorescent technologies

Specifications

Performance

  • Watts: 15W
  • Color Temp: 4000K (Cool White)
  • Lumens: 2,200
  • Efficacy: 146.7 lm/W
  • Color Accuracy: 82 CRI
  • L70 Lifespan: 50,000 hours
  • Input Voltage: Ballast Dependent
  • Power Factor: Ballast Dependent

Dimensions

  • Weight: 0.4 lbs

Technical Specifications

  • Product Type: Linear
  • Bulb Shape: T8
  • Nominal Length: 4FT
  • Finish: Frosted
  • Wattage: 15W
  • Wattage Equivalency: 32W Fluorescent
  • Typical Lumen Output: 2200
  • Efficacy: 147 lm/W
  • Color Temperature: 4000K Cool White
  • CRI: 82
  • Base Type: G13
  • L70 Lifespan: 50,000 hours
  • Operating Temperature: -20°C - 45°C
  • Dimmable: No
  • Beam Angle: 240°
  • Warranty: 5-Year, No-Compromise Warranty
  • For Use in Emergency Fixtures: No
  • For Use Outdoors in Open Fixtures: No

Description

  • Material: Glass

LED Characteristics

  • Installation Type: Type A, Plug and Play

Electrical Characteristics

  • Input Voltage: Ballast Dependent
  • Power Factor: Ballast Dependent
  • Operating Frequency: Ballast Dependent
  • Input Current @ 120V: Ballast Dependent
  • Input Current @ 277V: Ballast Dependent
  • Flicker: ≤40%
  • THDi: <25%

Listings

  • UL Listed: Yes
  • NSF Listing: Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones
  • DLC Product Code: PXYTNBV9
  • CEC Status: Lawful for sale in California
  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PXYTNBV9

Overview

UPC 01981375076
GTiN 00019813750767
Length 4 ft
Finish Frosted
Warranty Length 5 yr
Color 4000 K
Operating Temperature -20 C
Voltage 120 Volt
Type LAMPS
Material Glass
Weight 0.4 lb
Wattage 15 Watt
Color Temperature 4000 K
Color Accuracy 82 CRI
Lumens 2,200 lm
Base G13
Shape T8
Family Brand Name Rab Design Lighting
Dimmable? No
Beam Spread 240 degrees
Average Rated Life 50,000 hr
Power Factor Ballast Dependent
Efficacy 147 LPW
Color Rendering Index 82 CRI
