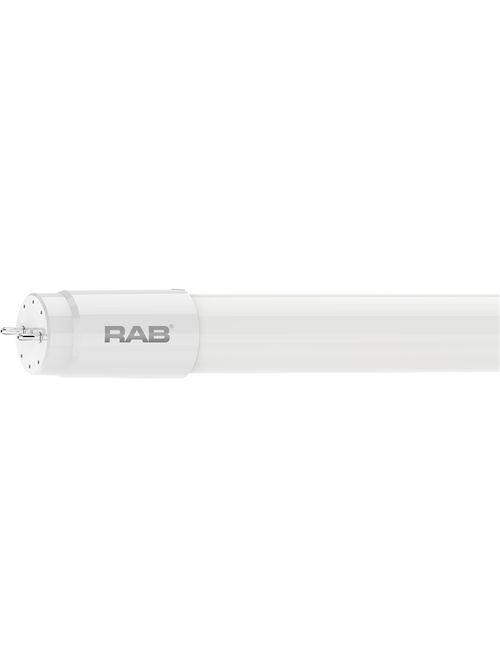

RAB T8-6-24G-850-DIR T8 LED 2ft 6W
$16.62/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # T8-6-24G-850-DIR
North Coast Part # 1690411

Features

  • FLUORESCENT REPLACEMENT - Replace conventional fluorescent T8 linear tubes
  • EASY TO INSTALL - Simply plug and play No rewiring, no tools, no instructions
  • 50,000-HOUR LIFESPAN - Lasts 1.6x longer than conventional fluorescent tubes
  • ENCLOSED FIXTURE RATED - May be used in enclosed and open fixtures
  • DIFFUSION COATING - Will maintain the same light quality over time and won't yellow, shrink, or wrinkle
  • BALLAST COMPATIBLE - Please check Compatibility List
  • SAVE ENERGY AND MONEY - Approximately 40% more efficient than conventional T8 lamps
  • INSTANT ON - No warmup time required, full brightness instantly
  • MERCURY FREE - Environmentally friendly vs fluorescent technologies

Specifications

Performance

  • Watts: 6W
  • Color Temp: 5000K (Daylight)
  • Lumens: 900
  • Efficacy: 150 lm/W
  • Color Accuracy: 82 CRI
  • L70 Lifespan: 50,000 hours
  • Input Voltage: Ballast Dependent
  • Power Factor: Ballast Dependent

Dimensions

  • Weight: 0.2 lbs

Technical Specifications

  • Product Type: Linear
  • Bulb Shape: T8
  • Nominal Length: 2FT
  • Finish: Frosted
  • Wattage: 6W
  • Wattage Equivalency: 17W Fluorescent
  • Typical Lumen Output: 900
  • Efficacy: 150 lm/W
  • Color Temperature: 5000K Daylight
  • CRI: 82
  • Base Type: G13
  • L70 Lifespan: 50,000 hours
  • Operating Temperature: -20°C - 45°C
  • Dimmable: No
  • Beam Angle: 240°
  • Warranty: 5-Year, No-Compromise Warranty
  • For Use in Emergency Fixtures: No
  • For Use Outdoors in Open Fixtures: No

Description

  • Material: Glass

LED Characteristics

  • Installation Type: Type A, Plug and Play

Electrical Characteristics

  • Input Voltage: Ballast Dependent
  • Power Factor: Ballast Dependent
  • Operating Frequency: Ballast Dependent
  • Input Current @ 120V: Ballast Dependent
  • Input Current @ 277V: Ballast Dependent
  • Flicker: ≤40%
  • THDi: <25%

Listings

  • UL Listed: Yes
  • NSF Listing: Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones
  • DLC Product Code: PGNVY5FD
  • CEC Status: Lawful for sale in California
  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PGNVY5FD

Overview

UPC 01981375093
GTiN 00019813750934
Length 2 ft
Finish Frosted
Warranty Length 5 yr
Color 5000 K
Operating Temperature 45 C
Voltage 120 Volt
Type LAMPS
Material Glass
Weight 0.2 lb
Wattage 6 Watt
Color Temperature 5000 K
Color Accuracy 82 CRI
Lumens 900 lm
Base G13
Shape T8
Family Brand Name Rab Design Lighting
Dimmable? No
Beam Spread 240 degrees
Average Rated Life 50,000 hr
Power Factor Ballast Dependent
Efficacy 150 LPW
Color Rendering Index 82 CRI
