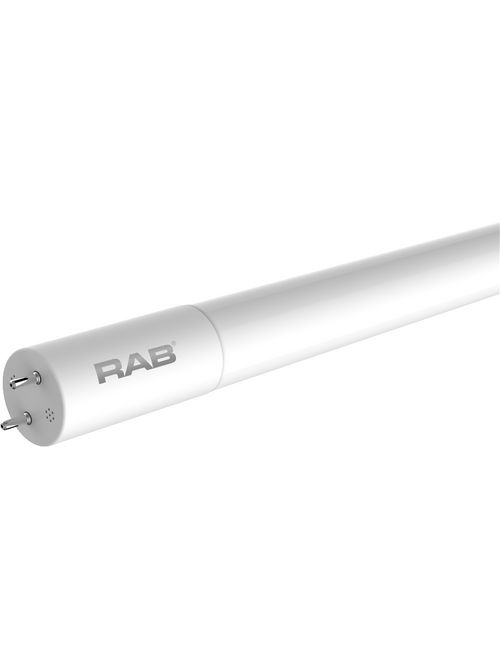

RAB T8-9-24G-830-DE-BYP T8 LED 2ft
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # T8-9-24G-830-DE-BYP
North Coast Part # 1835746


  • FLUORESCENT REPLACEMENT - Replace conventional fluorescent T8 and T12 linear tubes
  • EASY TO INSTALL - Simply cut the ballast out, and rewire sockets directly to line voltage
  • SAVE ENERGY AND MONEY - Provides same output as fluorescent but uses far less energy
  • SAVE ENERGY AND MONEY - Provides same output as fluorescent but uses far less energy
  • ENCLOSED FIXTURE RATED - May be used in enclosed and open fixtures
  • DIFFUSION COATING - Will maintain the same light quality over time and won't yellow, shrink, or wrinkle
  • BALLAST BYPASS - Internal driver eliminates the need for external ballasts or drivers
  • INSTANT ON - No warmup time required, full brightness instantly
  • LOW FLICKER - Less than 5% flicker
  • MERCURY FREE - Environmentally friendly vs fluorescent technologies
  • SHUNTED AND NON-SHUNTED - Works on shunted and non-shunted sockets



  • Watts: 9W
  • Color Temp: 3000K (Warm White)
  • Lumens: 1,100
  • Efficacy: 122.2 lm/W
  • Color Accuracy: 82 CRI
  • L70 Lifespan: 50,000 hours
  • Input Voltage: 120-277
  • Power Factor: 0.9


  • Weight: 0.3 lbs

Technical Specifications

  • Product Type: Linear
  • Bulb Shape: T8
  • Nominal Length: 2FT
  • Finish: Frosted
  • Wattage: 9W
  • Wattage Equivalency: 17W Fluorescent
  • Typical Lumen Output: 1100
  • Efficacy: 122 lm/W
  • Color Temperature: 3000K Warm White
  • CRI: 82
  • Base Type: G13
  • L70 Lifespan: 50,000 hours
  • Operating Temperature: -20°C - 45°C
  • Dimmable: No
  • Beam Angle: 240°
  • Warranty: 5-Year, No-Compromise Warranty
  • Installation Type: Type B, Double Ended wiring
  • For Use in Emergency Fixtures: No
  • For Use Outdoors in Open Fixtures: No

Electrical Characteristics

  • Input Voltage: 120-277V
  • Power Factor: 0.9
  • Operating Frequency: 50 / 60 Hz
  • THDi: <20%


  • UL Recognized: Yes
  • UL Classified: Yes
  • DLC Product Code: PNH89T0B
  • CEC Status: Lawful for sale in California


UPC 01981375086
Item Long Description T8 LED Glass 2Ft Type B 9W, 3000k, 1100Lm Double Ended
GTiN 00019813750866
Length 2 ft
Finish Frosted
Warranty Length 5 yr
Color 3000 K
Operating Temperature -20 C
Voltage 120-277 Volt
Weight 0.3 lb
Wattage 9 Watt
Color Temperature 3000 K
Color Accuracy 82 CRI
Lumens 1100 lm
Base G13
Input Voltage 120-277 V
Shape T8
Family Brand Name Rab Design Lighting
Dimmable? No
Beam Spread 240 degrees
Average Rated Life 50,000 hr
Power Factor 0.9
Efficacy 122 LPW
Color Rendering Index 82 CRI
