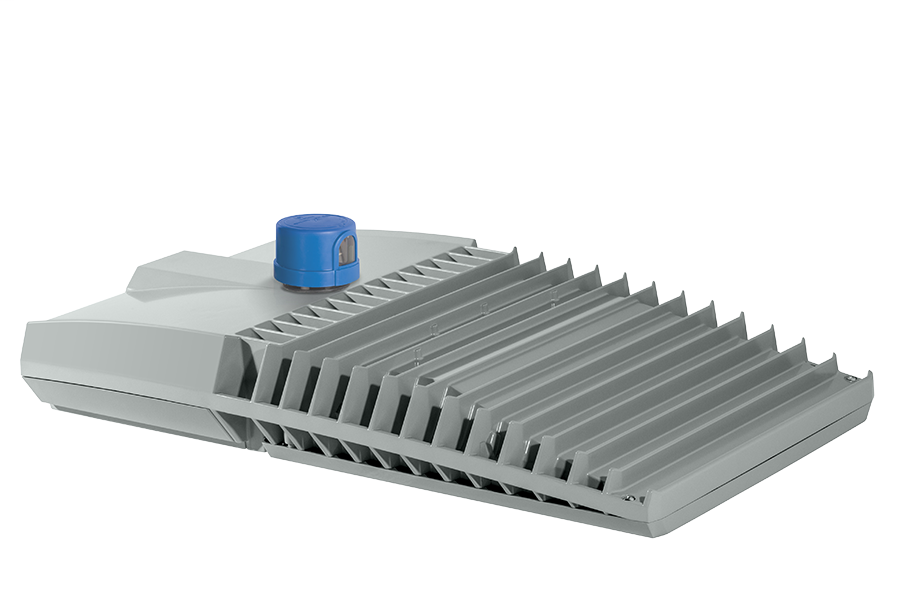

RAB TBLED2T150NRG/D10/7PR/PCT TBLED

$1,006.21/ea

Usually ships within 11 to 17 Days

Adding...

Already a Customer? Log in to view your pricing

Features

UL Listing: Suitable for wet locations
IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: PLWE9T8T

Driver: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 1.2A, 208V: 0.88A, 240V: 0.76A, 277V: 0.66A
Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
THD: 7.8% at 120V, 14.1% at 277V
Power Factor: 99.4% at 120V, 95.4% at 277V
7-Pin Receptacle: ANSI C136.41 7-pin receptacle
Photocell: 120-277V twistlock photocell included. Photocell is compatible with 120-277V.
Surge Protection: 10kV

IES Classification: The Type II distribution is ideal for entrance roadways, collector roads and other long, single-sided and narrow lighting applications. This type of lighting is commonly found on smaller local streets.
IP Rating: Ingress Protection rating of IP66 for dust and water
Vibration Rating: Industry-leading 5G vibration rating per ANSI C136.31
Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
Thermal Management: Superior thermal management design with external Air-Flow fins provides maximum operational life, even in high ambient temperature environments
Housing: Die cast aluminum housing, lens frame and mounting arm
Mounting: Fits most standard roadway upsweep arms. Adaptor brackets supplied fit 1", 1 1/4", 1 1/2" and 2" pipe arms. Fixture can be tilted at the following angles: -5°, -2.5°, 0°, 2.5°, and 5°.
Recommended Mounting Height: Up to 35 ft
Effective Projected Area: EPA = 1.7
Reflector: vacuum-metalized polycarbonate
Gaskets: High-temperature silicone gaskets
Finish: Formulated for high durability and long-lasting color
Green Technology: Mercury and UV free. RoHS-compliant components.
Lens: Clear tempered glass lens

Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
LEDs: Multi-chip, high-output, long-life LEDs
Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Accessory: Shorting Cap for 7-Pin Receptacle
10 Yr Limited Warranty: Fixture operation and paint finish are covered for a period of 10 years.
Replacement: Replaces 400W HPS
Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
