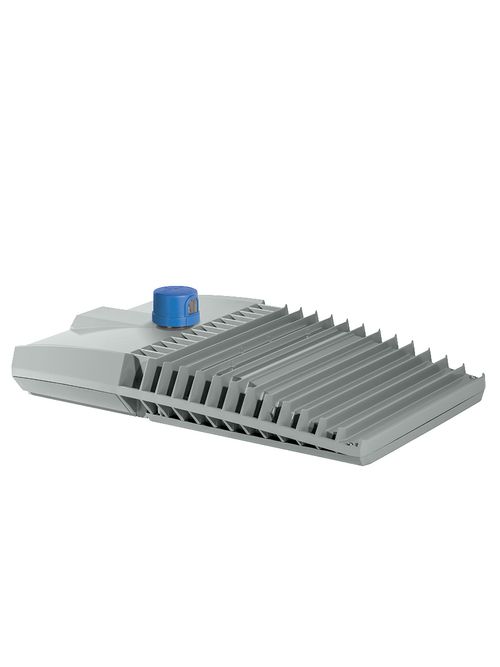

RAB TBLED3T150NRG/D10/7PR/PCT TBLED
$1,006.21/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # TBLED3T150NRG/D10/7PR/PCT
North Coast Part # 1834831

Features

  • IP66 Rated
  • Industry-leading 5G vibration rating per ANSI C136.31
  • 100,000-Hour LED lifespan
  • 10-Year, Limited Warranty

Specifications

Performance

  • Watts: 150W
  • Color Temp: 4000K (Neutral)
  • Lumens: 19,216
  • Efficacy: 125.3 lm/W
  • Color Accuracy: 71 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 1.2A
  • 208V: 0.88A
  • 240V: 0.76A
  • 277V: 0.66A
  • Input Watts: 153.30W

Dimensions

  • Weight: 39.2 lbs

Listings

  • UL Listing: Suitable for wet locations
  • IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: PRCJ9VKT

Electrical

  • Driver: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 1.2A, 208V: 0.88A, 240V: 0.76A, 277V: 0.66A
  • Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
  • THD: 7.8% at 120V, 14.1% at 277V
  • Power Factor: 99.4% at 120V, 95.4% at 277V
  • 7-Pin Receptacle: ANSI C136.41 7-pin receptacle
  • Photocell: 120-277V twistlock photocell included. Photocell is compatible with 120-277V.
  • Surge Protection: 10kV

Optical

  • BUG Rating: B2 U0 G4

Construction

  • IES Classification: The Type III distribution is ideal for roadway, general parking and other area lighting applications where a larger pool of lighting is required. It has greater streetside (transverse) throw, allowing the light to project outward and fill the area.
  • IP Rating: Ingress Protection rating of IP66 for dust and water
  • Vibration Rating: Industry-leading 5G vibration rating per ANSI C136.31
  • Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Thermal Management: Superior thermal management design with external Air-Flow fins provides maximum operational life, even in high ambient temperature environments
  • Housing: Die cast aluminum housing, lens frame and mounting arm
  • Mounting: Fits most standard roadway upsweep arms. Adaptor brackets supplied fit 1", 1 1/4", 1 1/2" and 2" pipe arms. Fixture can be tilted at the following angles: -5°, -2.5°, 0°, 2.5°, and 5°.
  • Recommended Mounting Height: Up to 35 ft
  • Effective Projected Area: EPA = 1.7
  • Reflector: vacuum-metalized polycarbonate
  • Gaskets: High-temperature silicone gaskets
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.
  • Lens: Clear tempered glass lens

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • LEDs: Multi-chip, high-output, long-life LEDs
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Other

  • Accessory: Shorting Cap for 7-Pin Receptacle
  • 10 Yr Limited Warranty: Fixture operation and paint finish are covered for a period of 10 years.
  • Replacement: Replaces 400W HPS
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981366889
GTiN 00019813668895
Finish Gray
Voltage 120/277 Volt
Type ROADWAY
Applications OUTDOOR
Weight 39.2 lb
Wattage 150 Watt
Color Accuracy 71 CRI
Lumens 19,216 lm
Family Brand Name Rab Design Lighting
Amperage 1.2 Amp
Average Rated Life 100,000 hr
Input Wattage 153.30 W
Power Factor 99.4% At 120V,95.4% At 277V
Efficacy 125.3 LPW
Total Harmonic Distortion 14.1% At 277V,7.8% At 120V
Color Gray
