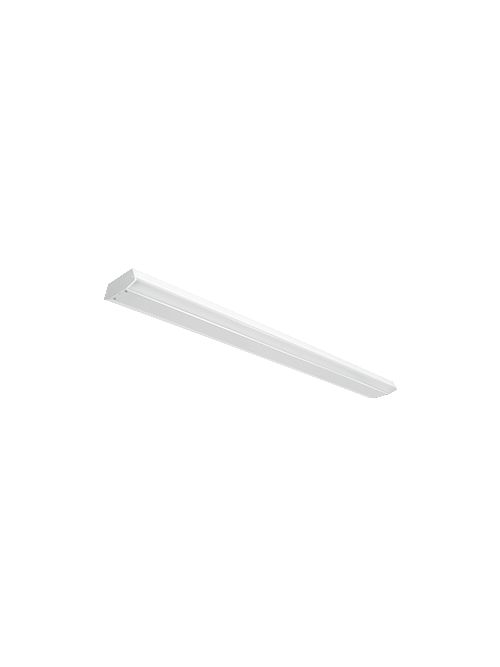

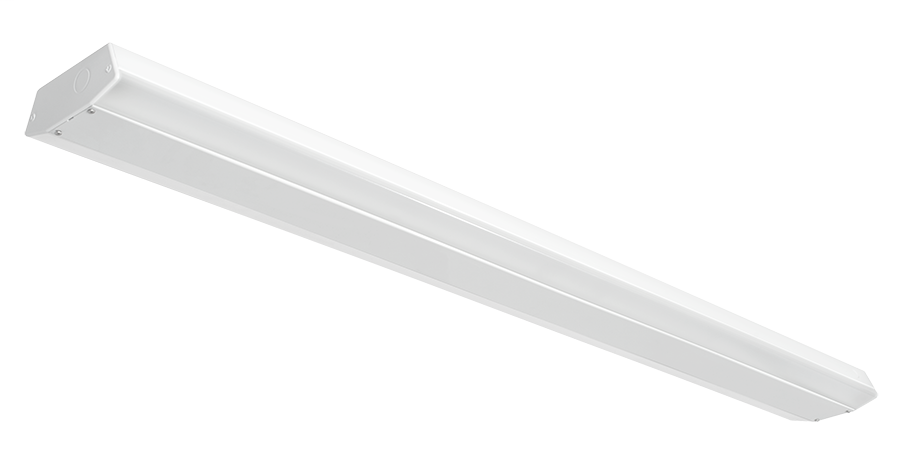

RAB TSLED4-36N/D10/E2 TREADSAFE 4FT
$582.78/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # TSLED4-36N/D10/E2
North Coast Part # 1830319

Features

  • Diffused lens for smooth light distribution
  • 0-10V dimming driver, standard
  • 100,000-Hour LED lifespan
  • 5-Year, No-Compromise Warranty

Specifications

Performance

  • Watts: 36W
  • Color Temp: 4000K (Neutral)
  • Lumens: 4,004
  • Efficacy: 114.4 lm/W
  • Color Accuracy: 84 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.30A
  • 208V: 0.18A
  • 240V: 0.15A
  • 277V: 0.14A
  • Input Watts: 35.00W

Dimensions

  • Weight: 14.5 lbs

Listings

  • UL Listing: Suitable for damp locations
  • IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: P2HEJX2W

Electrical

  • Driver: Constant Current, Class 2, 100-277V, 50/60 Hz., 2KV surge protection, 120V: 0.30A, 208V: 0.18A, 240V: 0.15A, 277V: 0.14A
  • Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
  • THD: 23.9% at 120V, 20.9% at 277V
  • Power Factor: 95.1% at 120V, 93.3% at 277V
  • Battery Backup: Battery backup will operate the LED Lamp for 90 minutes if power fails. Wired for 120V-277V. Illuminated push to test switch available to test battery backup functionality.

LED Characteristics

  • LEDs: Long-life, high-efficacy surface mount LEDs
  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

  • Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
  • Housing: Die-formed, 20 gauge, cold-rolled, post-painted steel (white)
  • Lens: Soft-glow acrylic lens reduces glare and has smooth and even light distribution
  • Reflector: High-reflectance white steel
  • Mounting: Surface mount, ceiling or wall. Knockouts on sides and back.
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.

Other

  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Equivalency: Equivalent to (1) F32T8
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981349573
GTiN 00019813495736
Finish Bronze
Voltage 120/277 Volt
Type GENERAL PURPOSE
Applications INDOOR
Weight 14.5 lb
Wattage 36 Watt
Color Temperature 4000 K
Color Accuracy 84 CRI
Lumens 4,004 lm
Family Brand Name Rab Design Lighting
Amperage 0.18 Amp
Average Rated Life 100,000 hr
Input Wattage 35.00 W
Power Factor 93.3% At 277V,95.1% At 120V
Efficacy 114.4 LPW
Total Harmonic Distortion 20.9% At 277V,23.9% At 120V
