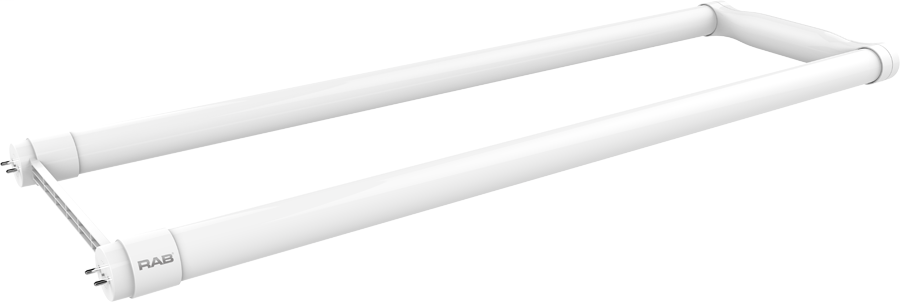

RAB U6-15-840-DIR LED U Bent 15W 4K

Features

• FLUORESCENT REPLACEMENT - Replace conventional fluorescent T8 linear tubes
• EASY TO INSTALL - Simply plug and play No rewiring, no tools, no instructions
• 50,000-HOUR LIFESPAN - Lasts 1.6x longer than conventional fluorescent tubes
• ENCLOSED FIXTURE RATED - May be used in enclosed and open fixtures
• DIFFUSION COATING - Will maintain the same light quality over time and won't yellow, shrink, or wrinkle
• BALLAST COMPATIBLE - Please check Compatibility List
• SAVE ENERGY AND MONEY - Approximately 40% more efficient than conventional T8 lamps
• INSTANT ON - No warmup time required, full brightness instantly
• MERCURY FREE - Environmentally friendly vs fluorescent technologies

Specifications

Performance

• Watts: 15W
• Color Temp: 4000K (Cool White)
• Lumens: 2,200
• Efficacy: 146.7 lm/W
• Color Accuracy: 82 CRI
• L70 Lifespan: 50,000 hours
• Input Voltage: Ballast Dependent
• Power Factor: Ballast Dependent

Dimensions

• Weight: 0.9 lbs

Technical Specifications

• Product Type: Linear
• Bulb Shape: U-Bent
• Nominal Length: U6
• Finish: Frosted
• Wattage: 15W
• Wattage Equivalency: 32W Fluorescent
• Typical Lumen Output: 2200
• Efficacy: 147 lm/W
• Color Temperature: 4000K Cool White
• CRI: 82
• Base Type: 2G13
• L70 Lifespan: 50,000 hours
• Operating Temperature: -20°C - 45°C
• Dimmable: No
• Beam Angle: 240°
• Warranty: 5-Year, No-Compromise Warranty
• Installation Type: Type A, Plug and Play
• For Use in Emergency Fixtures: No
• For Use Outdoors in Open Fixtures: No

Electrical Characteristics

• Input Voltage: Ballast Dependent
• Power Factor: Ballast Dependent
• Operating Frequency: Ballast Dependent
• Input Current @ 120V: Ballast Dependent
• Input Current @ 277V: Ballast Dependent
• THDi: <20%

Listings

• UL Listed: Yes
• DLC Product Code: PCMPUEKD
• CEC Status: Lawful for sale in California
