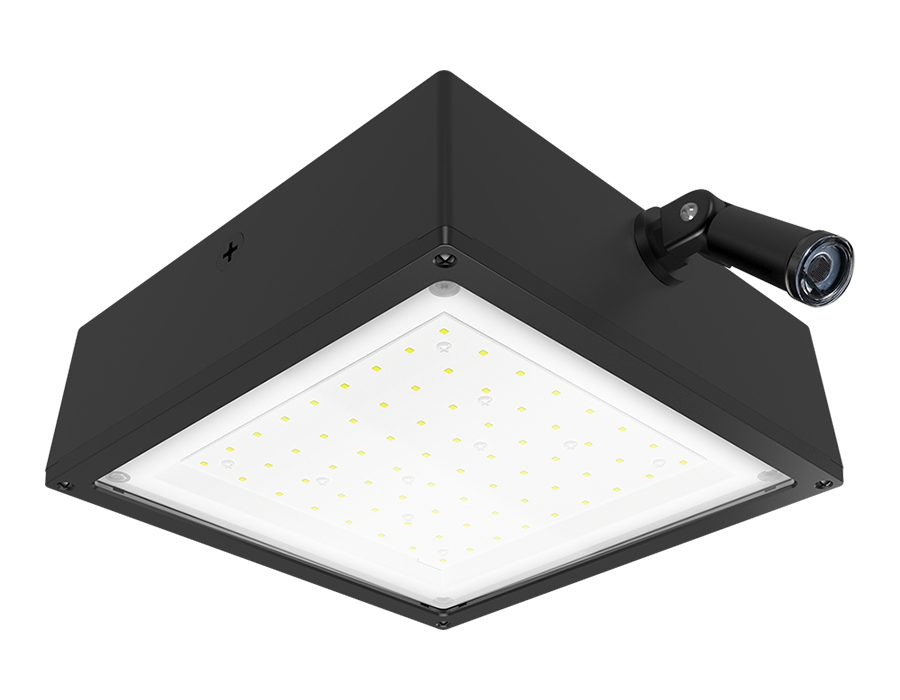

RAB VANLED20F/PCS VNDLPRF CANOPY 20
$402.49/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # VANLED20F/PCS
North Coast Part # 1345630

Features

  • Fits the footprint of older canopy lights
  • Vandal resistant and UV resistant lens
  • Ultra-high efficiency
  • Clean, contemporary, low-profile design
  • Available with drop lens or flat lens
  • IP66 rated, keeps dust, bugs and water out
  • Photo and motion sensor options available

Specifications

Performance

  • Watts: 20W
  • Color Temp: 5000K (Cool)
  • Lumens: 3,184
  • Efficacy: 139.6 lm/W
  • Color Accuracy: 84 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.19A
  • 208V: 0.12A
  • 240V: 0.1A
  • 277V: 0.09A
  • Input Watts: 22.80W

Dimensions

  • Weight: 10.0 lbs

Listings

  • UL Listing: Suitable for Wet Locations. Covered Ceiling Mount Only.
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: PR5FDZY9

Electrical

  • Driver: Class 2, Constant Current, 120-277V, 50-60Hz, 120V: 0.19A, 208V: 0.12A, 240V: 0.1A, 277V: 0.09A
  • Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
  • THD: 8.33% at 120V, 7.24% at 277V
  • Power Factor: 99.8% at 120V, 94.8% at 277V
  • Photocell: 120V Swivel Photocell Included. Photocell is only compatible with 120V.

LED Characteristics

  • LEDs: Long-life, high-efficacy surface mount LEDs
  • Color Stability: RAB LEDs exceed industry standards for chromatic stability
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

  • Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Lens: Vandal-resistant polycarbonate textured opaque for low glare flat lens
  • Housing: Die-cast aluminum housing and lens frame with (4) 1/2" NPS side conduit entries and weatherproof rear wire plug and access plate
  • Mounting: Ceiling mount to recessed junction with knockout template or directy to ceiling surface, utilizing side conduit entry points
  • IP Rating: Ingress Protection rating of IP66 for dust and water
  • Air Tight: Housing certified Air Tight as per ASTM E283
  • Finish: Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color

Other

  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981326674
GTiN 00019813266749
Finish Polyester Powder Coating
Voltage 120 Volt
Type CANOPY
Applications OUTDOOR
Mounting Type Ceiling
Weight 10.0 lb
Wattage 20 Watt
Color Temperature 5000 K
Color Accuracy 84 CRI
Lumens 3,184 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Reflector Finish Semi Specular, Metalized Polycarbonate
Amperage 0.1 Amp
Max Operating Temperature 104 degrees F
Average Rated Life 100,000 hr
Input Wattage 22.80 W
Power Factor 99.8% At 120V,94.8% At 277V
Efficacy 139.6 LPW
Total Harmonic Distortion 8.33% At 120V,7.24% At 277V
