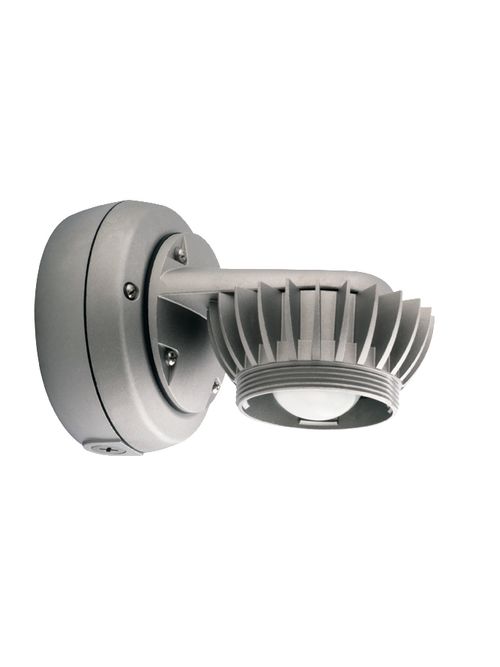

RAB VXBRLED13 VAPORPROOF 13W COOLWA
Product image thumbnail 0
Product image thumbnail 1
$248.29/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # VXBRLED13
North Coast Part # 1163621

Features

  • High performance LED light engine
  • 100,000-hour life based on LM-80 results and TM-21 calculations
  • Die Cast Aluminum Housing
  • Classic design with state of the art LED technology

Specifications

Performance

  • Watts: 13W
  • Color Temp: 5000K (Cool)
  • Lumens: 507
  • Efficacy: 33.1 lm/W
  • Color Accuracy: 86 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.3A
  • 208V: 0.3A
  • 240V: 0.3A
  • 277V: 0.15A
  • Input Watts: 15.30W

Dimensions

  • Weight: 4.3 lbs

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Light Color (Nominal CCT): 3000K
  • Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

  • Specification: These specifications are for fixture with Frosted Glass Globe and Die Cast Guard combination. Consult warehouse for different fixture combinations.
  • Globes and Guards: Vaporproof LEDs are compatible with RAB Globes and Guards
  • Construction: Die cast aluminum housing and door. Tether connects back housing halves for safety.
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Ambient Temperature: Suitable for use in 35°C (95°F)
  • Housing: Die cast aluminum housing and driver housing
  • Mounting: Three 1/2" NPS conduit entry points
  • Reflector: High quality hydroformed semi-specular aluminum
  • Gaskets: High-temperature Silicone
  • Finish: Natural shot blasted aluminum
  • Green Technology: Mercury and UV free. RoHS-compliant components.

Listings

  • UL Listing: Suitable for Wet locations only with outer globe and as a Downlight
  • IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Electrical

  • Driver: Multi-chip single 13W high output long life LED Driver. Constant Current,100V-277V, 50/60 Hz., 100-240VAC.3-.15 Amps 277VAC.15 Amps. Will deliver 70% of its initial lumens at 100,000 hours based on LM-80 Tests.
  • Surge Protection: 4kV

Other

  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Patents: The VXBRLED design is protected by Taiwan Patent 01510951 and patents pending in the U.S., Canada, China, and Mexico.
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Optical

  • BUG Rating: B0 U2 G1

Overview

UPC 01981302836
GTiN 00019813028361
Voltage 100-240 Volt
Type VAPORPROOF
Weight 4.3 lb
Wattage 13 Watt
Color Temperature 5000 K
Color Accuracy 86 CRI
Lumens 507 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Amperage 0.15 Amp
Average Rated Life 100,000 hr
Input Wattage 15.30 W
Efficacy 33.1 LPW
