Manufacturer RAB Lighting
Mfg Catalog # VXBRLED13DG/UP-BLU
North Coast Part # 1015274

Features

  • Ideal for call boxes on campuses, parking areas and walkways
  • Can be mounted as an uplight
  • 100,000-hour LED lifespan
  • True blue design with blue globe and blue LED
  • Mounts to wall or existing pole
  • 5-Year, No-Compromise Warranty

Specifications

Performance

  • Watts: 13W
  • Lumens: 0
  • Efficacy: 0 lm/W
  • Color Accuracy: CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.13A
  • 208V: 0.08A
  • 240V: 0.07A
  • 277V: 0.06A
  • Input Watts: 15.10W

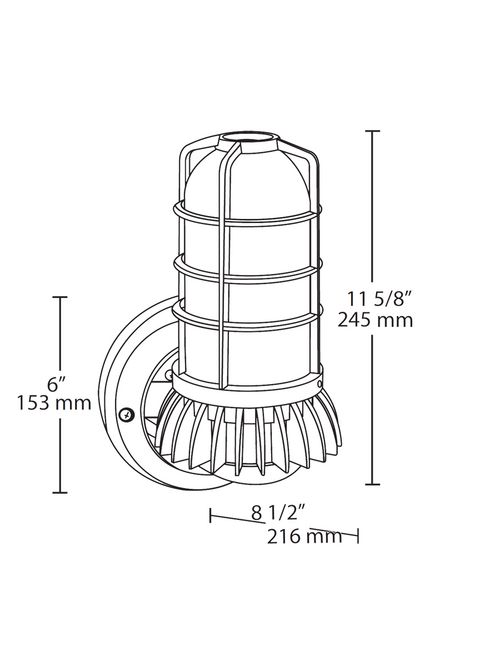

Dimensions

  • Weight: 5.0 lbs

Listings

  • UL Listing: Suitable for wet locations. Suitable for mounting within 1.2m (4ft) of the ground.
  • IESNA LM-80 Testing: RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-80

LED Characteristics

  • LED: Multi-chip, 13W high-output, long-life blue LED
  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations

Construction

  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Housing: Precision die-cast aluminum housing, lens frame
  • Mounting: (3) 1/2" NPS conduit entry points
  • Gaskets: High-temperature silicone
  • Finish: Natural shot blasted aluminum
  • Guard and globe: Shot blasted guard with internally frosted blue globe
  • Green Technology: Mercury and UV free. RoHS-compliant components.

Other

  • Patents: The design of the LBEACON™ is protected by patents pending in US, Canada, China, Taiwan and Mexico
  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Electrical

  • Driver: Constant Current, 100V-277V, 50/60 Hz, 100-240VAC = 0.3-0.15 Amp, 277VAC = 15Amps. THD is less than equal to 20%, Power Factor = 97.5%.
  • THD: 6.1% at 120V, 10.1% at 277V

Overview

UPC 01981303373
GTiN 00019813033730
Voltage 120-277 Volt
Type VAPORPROOF
Weight 5.0 lb
Wattage 13 Watt
Family Brand Name Rab Design Lighting
Lamp Type LED
Amperage 0.06 Amp
Average Rated Life 100,000 hr
Input Wattage 15.10 W
Efficacy 0 LPW
Total Harmonic Distortion 10.1% At 277V,6.1% At 120V
Applications INDOOR
