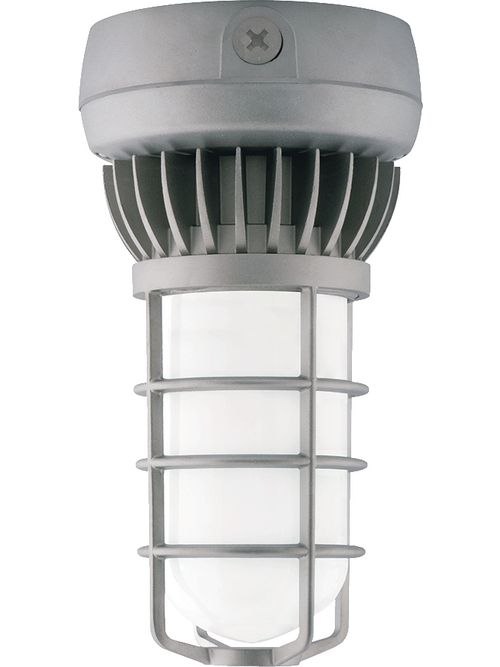

RAB VXLED26DG 26 W 120/208/240/277 Volt 11-1/4 x 6 Inch Cool Natural Die-Cast Aluminum LED Vaporproof Lighting Fixture
Product image thumbnail 0
Product image thumbnail 1
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # VXLED26DG
North Coast Part # 823918


  • Vaporproof LED Ceiling Mount
  • Superior Thermal Management (Patent Pending)
  • All Die-Cast Aluminum Construction
  • 100,000-hour life based on LM-80 results and TM-21 calculations
  • Thermal Shock-Resistant Frosted Glass Globe
  • Traditional Look, Cutting-Edge Technology
  • 5-Year, No-Compromise Warranty



  • Watts: 26W
  • Color Temp: 4900K (Cool)
  • Lumens: 2,004
  • Efficacy: 73.9 lm/W
  • Color Accuracy: 68 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.25A
  • 208V: 0.14A
  • 240V: 0.13A
  • 277V: 0.11A
  • Input Watts: 27.10W


  • Weight: 6.0 lbs


  • UL Listing: Suitable for wet locations as a downlight
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • LED: Multi-chip 26W high-output, long-life LED
  • Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C38.377-2011.


  • Globes and Guards: Vaporproof LEDs are compatible with RAB Globes and Guards
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Ambient Temperature: Suitable For use in 40°C (104°F)
  • Housing: All die-cast aluminum construction
  • Gaskets: High-temperature silicone
  • Finish: Natural shot blasted aluminum
  • Mounting: (3) 1/2" NPS conduit entry points
  • Guard and Globe: Shot blasted guard with frosted globe
  • Green Technology: Mercury and UV free. RoHS-compliant components.


  • Equivalency: Equivalent to 200W Incandescent
  • Patents: The design of the LVAPOR is protected by the following patents US pat. pending; D651738 CN ZL201230040341.3; ZL201130028360.X, TW pat. 101301367 MX 35699; pat. pending CA.
  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.


  • Driver: Constant Current, 100V-277V, 50/60 Hz, 0.48 Amp, Power Factor 97.9%.


UPC 01981303292
GTiN 00019813032924
Finish Bronze
Voltage 120/277 Volt
Applications INDOOR
Mounting Type Ceiling,Ceiling Mounting
Weight 6.0 lb
Wattage 26 Watt
Color Temperature 4900 K
Color Accuracy 68 CRI
Lumens 2004 lm
Family Brand Name Rab Design Lighting
Amperage 0.11 Amp
Average Rated Life 100,000 hr
Input Wattage 27.10 W
Efficacy 73.9 LPW
