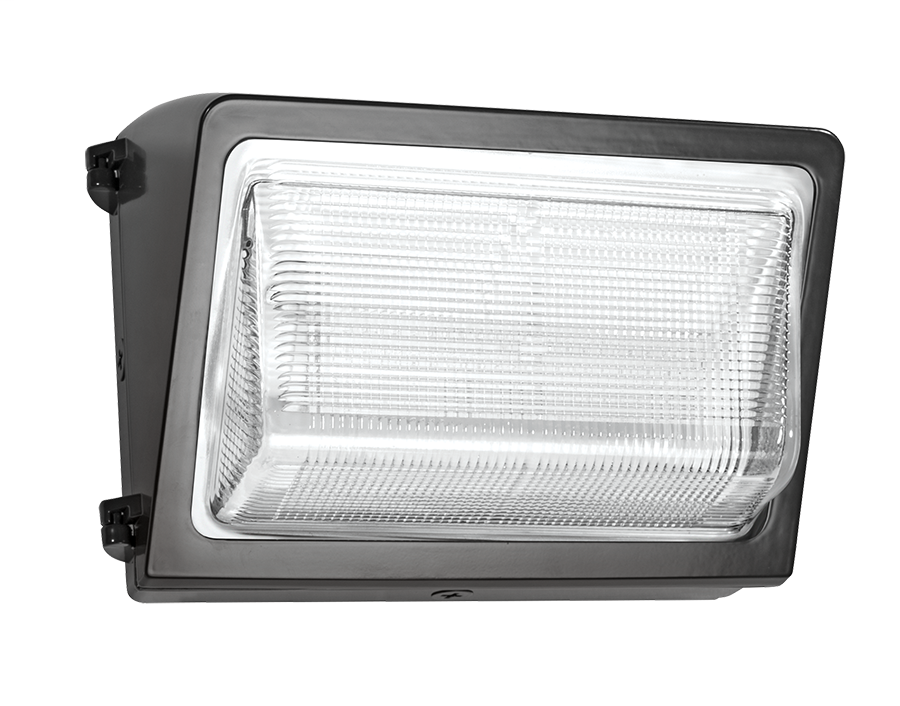

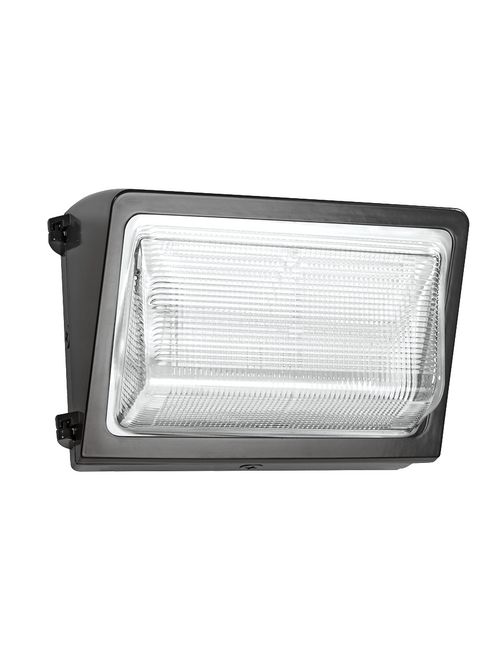

RAB WP2LED37/480/PCS4 WALLPK 37W CO
$573.77/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # WP2LED37/480/PCS4
North Coast Part # 1436266

Features

  • Covers footprint of traditional HID wall packs
  • WP2LED replaces up to 175W MH
  • 100,000-Hour LED lifespan

Specifications

Performance

  • Watts: 37W
  • Color Temp: 5000K (Cool)
  • Lumens: 4,328
  • Efficacy: 118.6 lm/W
  • Color Accuracy: 83 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.3A
  • Input Watts: 36.50W

Dimensions

  • Weight: 9.6 lbs

Listings

  • UL Listing: Suitable for wet locations. Wall mount only.
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PSDJXXK5

Optical

  • BUG Rating: B1 U4 G3

Construction

  • Thermal Management: Superior thermal management with die-cast aluminum heatsink
  • Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Housing: Precision die-cast aluminum housing
  • Mounting: Die-cast backbox with four (4) conduit entry points and knockout pattern for junction box or direct wall mounting. Hinged door for easy re-assembly.
  • Lens: Prismatic, heat-resistant borosilicate glass
  • Reflector: High-gloss white aluminum
  • Gaskets: High-temperature silicone gaskets
  • Finish: Formulated for high durability and long-lasting color

Electrical

  • Driver: Constant Current, Class 2, 450mA, 50/60 Hz. 480V, 4kV surge protection
  • Photocell: 480V Swivel Photocell Included. Photocell is only compatible with 347-480V.

LED Characteristics

  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Other

  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981331487
GTiN 00019813314877
Voltage 480 Volt
Type LED WALLPACKS
Weight 9.6 lb
Wattage 37 Watt
Color Temperature 5000 K
Color Accuracy 83 CRI
Lumens 4,328 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Amperage 0.3 Amp
Max Operating Temperature 104 degrees F
Average Rated Life 100,000 hr
Input Wattage 36.50 W
Efficacy 118.6 LPW
