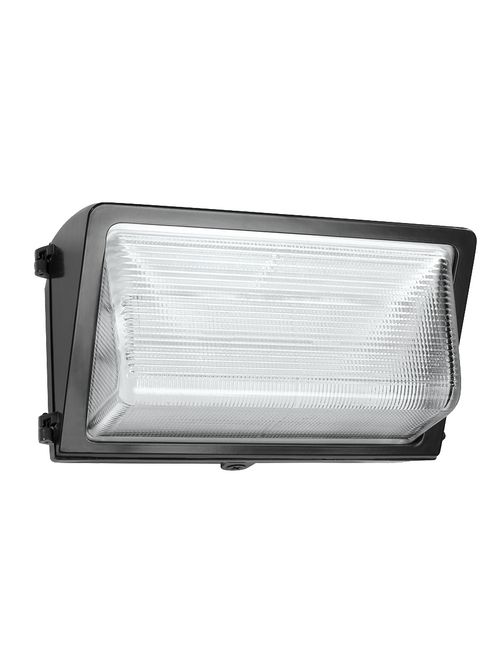

RAB WP3LED82/PC2 WALLPCK 82W 5K 277
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$750.30/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # WP3LED82/PC2
North Coast Part # 1827863

Features

  • Affordable wall pack with traditional look
  • Covers footprint of traditional HID wall packs
  • Optional photocell (button or swivel) available
  • 480V models available

Specifications

Performance

  • Watts: 82W
  • Color Temp: 5000K (Cool)
  • Lumens: 9,280
  • Efficacy: 114.4 lm/W
  • Color Accuracy: 82 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 208V: 0.34A
  • 240V: 0.32A
  • 277V: 0.3A
  • Input Watts: 81.10W

Dimensions

  • Weight: 16.8 lbs

Listings

  • UL Listing: Suitable for wet locations. Wall mount only.
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PHEX2A8F

Optical

  • BUG Rating: B2 U5 G5

Construction

  • Thermal Management: Superior thermal management with die-cast aluminum heatsink
  • Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Housing: Precision die-cast aluminum housing
  • Mounting: Die-cast backbox with four (4) conduit entry points and knockout pattern for junction box or direct wall mounting. Hinged door for easy re-assembly.
  • Lens: Prismatic, heat-resistant borosilicate glass
  • Reflector: High-gloss white aluminum
  • Gaskets: High-temperature silicone gaskets
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.

Electrical

  • Driver: Constant Current, Class 2, 1400mA, 50/60 Hz. 100 - 277V, 4kV surge protection
  • Photocell: 277V Button Photocell Included. Photocell is compatible with 208V-277V.

LED Characteristics

  • Lifespan: 60,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Other

  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

GTiN 00019813493534
Finish WHITE
Voltage 277 Volt
Type WALLPACK
Applications OUTDOOR
Weight 16.8 lb
Wattage 82 Watt
Color Temperature 5000 K
Color Accuracy 82 CRI
Lumens 9280 lm
Family Brand Name Rab Design Lighting
Amperage 0.3 Amp
Max Operating Temperature 104 degrees F
Average Rated Life 100,000 hr
Input Wattage 81.10 W
Efficacy 114.4 LPW
Product UPC 01981349353
